Appleton LB47SA fm7 body type lb 1-1/4 in

Product Description

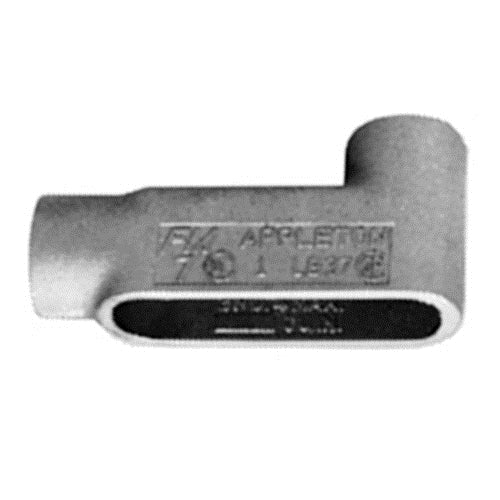

The APPLETON LB47SA is a FM7 UNILETS Type LB Conduit Outlet Body. It is made of aluminum with an epoxy powder coat finish and features a tapered female threaded connection. This conduit body is 6-1/2 IN long and 3.31 IN high and is for use with rigid steel, rigid aluminum conduit, and IMC.

• FM7 UNILETS Type LB Conduit Outlet Body
• Hub Size: 1-1/4 IN
• Material: Aluminum

Product Highlights

This aluminum conduit body serves as a pulling fitting, makes bends, and allows connections for branch runs.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LB47SA

Technical Specifications

• Type: Type LB Conduit Outlet Body
• Brand: Appleton
• Finish: Powder Coated
• Height: 3.31 Inch
• Length: 6.5 Inch
• Hub Size: 1.25 in
• Material: Aluminum
• Sub Brand: UNILETS
• Product UPC: 78138160076
• 12-Digit UPC: 781381600767
• Applications: For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
• TC Connection: Tapered Female Threaded
• Configuration: LB
• Cover Type: Epoxy Powder Coated Copper Free Cast Aluminum
• Hub Location: 90 Deg
• Number of Hubs: 2
• Installation: Threaded
• Form Type: Form 7
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Applicable Standard: NEMA FB-1
• Capacity: 20 Cu Inch
• Family / Style: Form 7
• Application: Rigid Conduit
• Cover: Cover Not Included
• Hub Placement: 90-Degree
• Access: Back
• Form/Series: Form 7
