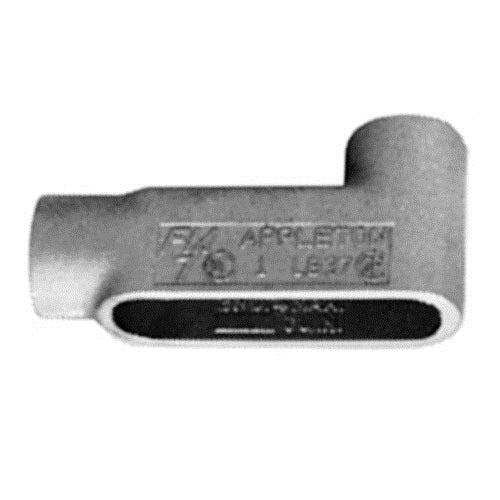

Appleton LB47 UNILETS Type LB Conduit Outlet Body 1-1/4 in Hub 20 cu-in

Product Description

The Appleton LB47 is a Type LB conduit outlet body designed for reliable electrical connections. This unit features a one and one-quarter inch hub and a cubic capacity of twenty cubic inches. It is made from Grayloy iron, ensuring durability suitable for various installation environments.

• Integral bushing protects conductor insulation.
• Compatible with Crouse-Hinds Form 7 bodies.
• Installed securely with Wedge-Lok clip cover design.

Product Highlights

This conduit body is ideal for use with rigid steel, aluminum, and IMC conduit. Its design allows for safe and efficient connections.

Product Information

Standard Information

• Brand: Appleton
• MPN: LB47

Technical Specifications

• Application: For Rigid Steel/Aluminum and IMC Conduit
• Capacity: 20 cu-in
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 6.5 in L x 3.19 in W x 3.31 in H
• Enclosure: NEMA FB-1
• Finish: Triple Coated
• Form: Form 7
• Hub Size: 1-1/4 in
• Material: Grayloy Iron
• Mfg Standards/Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514A/514B/E2527, C22.2 No. 18.3/065183 Certified
• Mounting Type: Surface
• Number of Hubs: 2
• Package Height: 3.1 in
• Package Length: 6.5 in
• Package Weight: 3.21 lb
• Package Width: 4.7 in
• Type: Type LB
