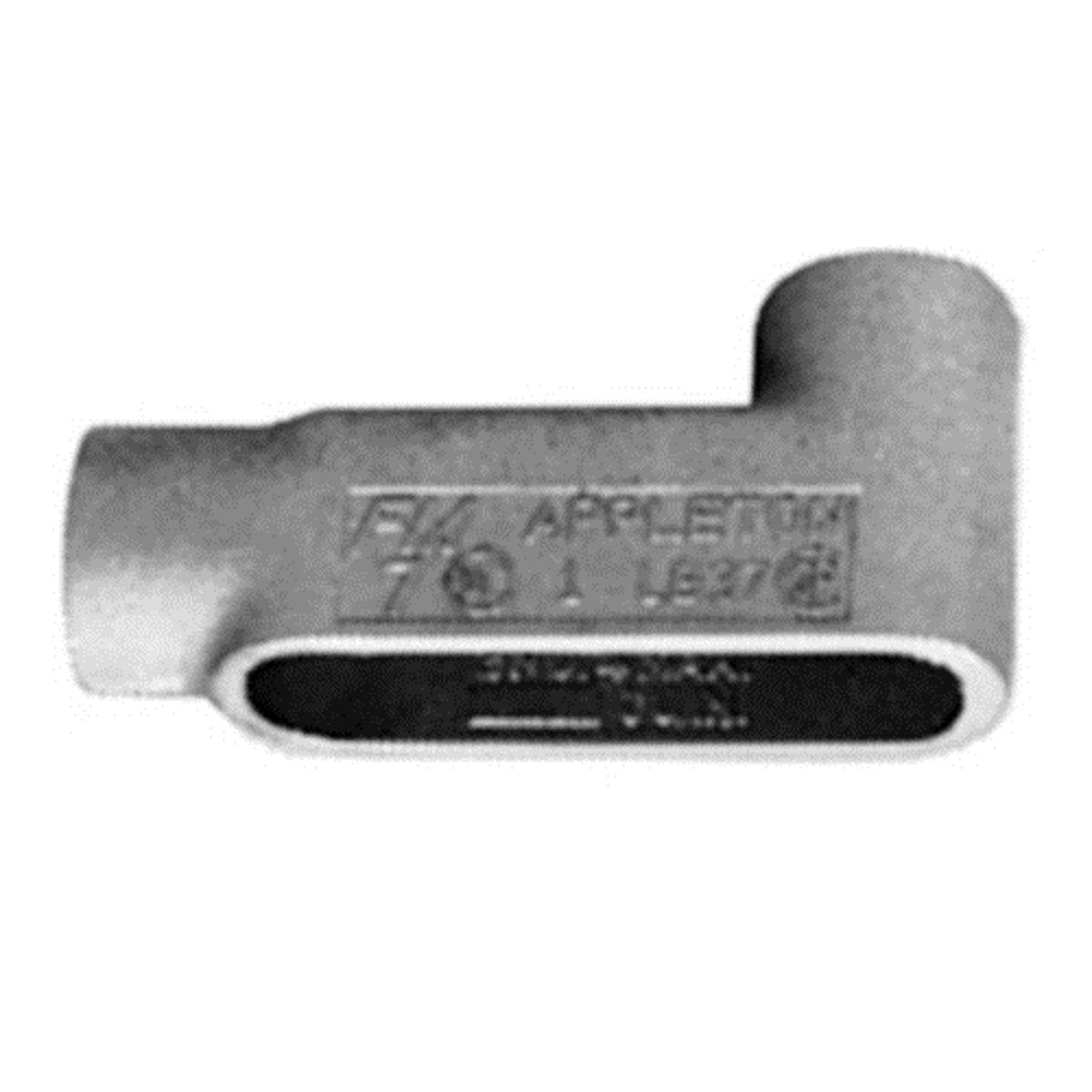

Appleton LB37SA Conduit Outlet Body Type LB 1 in Hub 2 Hubs 11 cu-in 7 NEMA FB-1 Enclosure

Product Description

The Appleton LB37SA is a conduit outlet body designed for use with rigid steel, rigid aluminum conduit, and intermediate metal conduit (IMC). With a hub size of one inch and a capacity of eleven cubic inches, it is suitable for various electrical installations. The construction features a cast aluminum body with an epoxy powder coat finish for durability. This product complies with UL and CSA standards for safety and reliability.

• Hub Size: 1 inch
• Material: Aluminum
• Capacity: 11 cu-in

Product Highlights

This conduit outlet body serves multiple functions including bending conduits, allowing conduit connections, and providing access to conductors for maintenance. The tapered female threaded connections ensure tight, rigid joints, enhancing the ground continuity of electrical systems.

Product Information

Standard Information

• Brand: Appleton
• Manufactured By: Appleton Electric

Technical Specifications

• Catalog Number: LB37SA
• Connection: Tapered Female Threaded
• Finish: Epoxy Powder Coat
• Height: 2.88 inches
• Length: 6 inches
• Height UOM: Inch
• Length UOM: Inch
• Country of Origin: Mexico
