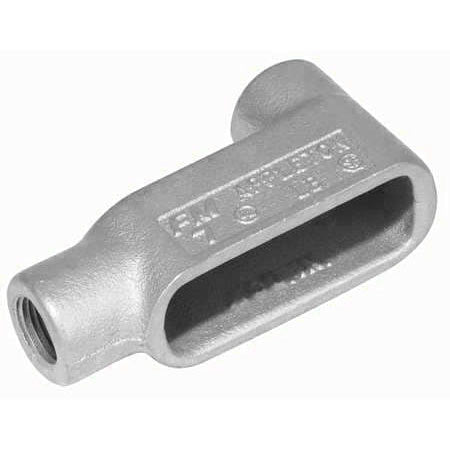

Appleton LB37 Type LB Conduit Outlet Body, 1 in Hub, 10.5 cu-in

Product Description

The Appleton LB37 is a Type LB conduit outlet body designed for use in rigid and IMC conduit applications. This product features a one inch hub and a volume of ten and a half cubic inches. Built from Grayloy iron and coated with aluminum enamel and zinc electroplating, it ensures durability and resistance to various environmental conditions.

• Flat back design supports surface mountings.
• Compatible with other manufacturers' Form 7 conduit bodies.
• Suitable for wet locations when equipped with gasketed covers.

Product Highlights

This conduit outlet body offers a reliable solution for electrical junctions, ensuring safe and efficient connections.

Product Information

Standard Information

• Brand: Appleton
• MPN: LB37

Technical Specifications

• Application: Rigid/IMC conduit applications
• Capacity: 10.5 cu-in
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 6 in L x 1-3/4 in W x 2-7/8 in H
• Enclosure: NEMA FB-1/FB-2.10
• Finish: Aluminum Enamel/Zinc Electroplated
• Form: 7
• Hub Size: 1 in
• Material: Grayloy Iron
• Mfg Standards/Approvals: RoHS Compliant, UL 514A File No. E18095, C22.2 File No. 18/009795, Federal Specification A-A-50563
• Mounting Type: Surface
• Number of Hubs: 2
• Package Height: 0.98 in
• Package Length: 8.4 in
• Package Weight: 1.75 lb
• Package Width: 5.7 in
• Type: Type LB
