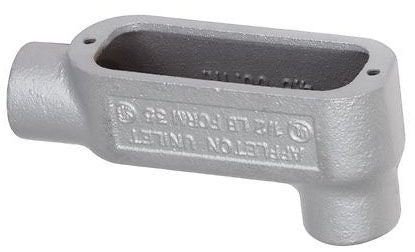

Appleton LB350-M Type LB Conduit Body 3-1/2 inch Malleable Iron

Product Description

The Appleton LB350-M is a Type LB conduit body made from malleable iron. This product is designed for conduit systems requiring durable connections. It features a hub size of three and one-half inches and provides a wiring capacity of three hundred cubic inches. The triple-coat finish includes zinc electroplate, chromate, and epoxy powder coat for enhanced corrosion resistance and durability.

• Hub size of three and one-half inches
• Capacity of three hundred cubic inches
• Manufactured from malleable iron with a triple-coat finish

Product Highlights

Built to function in rigid steel and aluminum conduit systems, this conduit body allows for easy bends and connections. Its tapered female threaded connections ensure secure and reliable installation. The design includes built-in rollers to facilitate cable pulling, minimizing potential damage during maintenance.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: LB350-M

Technical Specifications

• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Length: Sixteen and one-half inches
• Height: Six point eight one inches
• Form: 35
• Connection: Tapered Female Threaded
• Hub Size: Three and one-half inches
• Application: For use with rigid steel and rigid aluminum conduit, and IMC
• Standards: UL 514A, UL 514B, CSA C22.2 No. 18.3, NEMA FB-1
