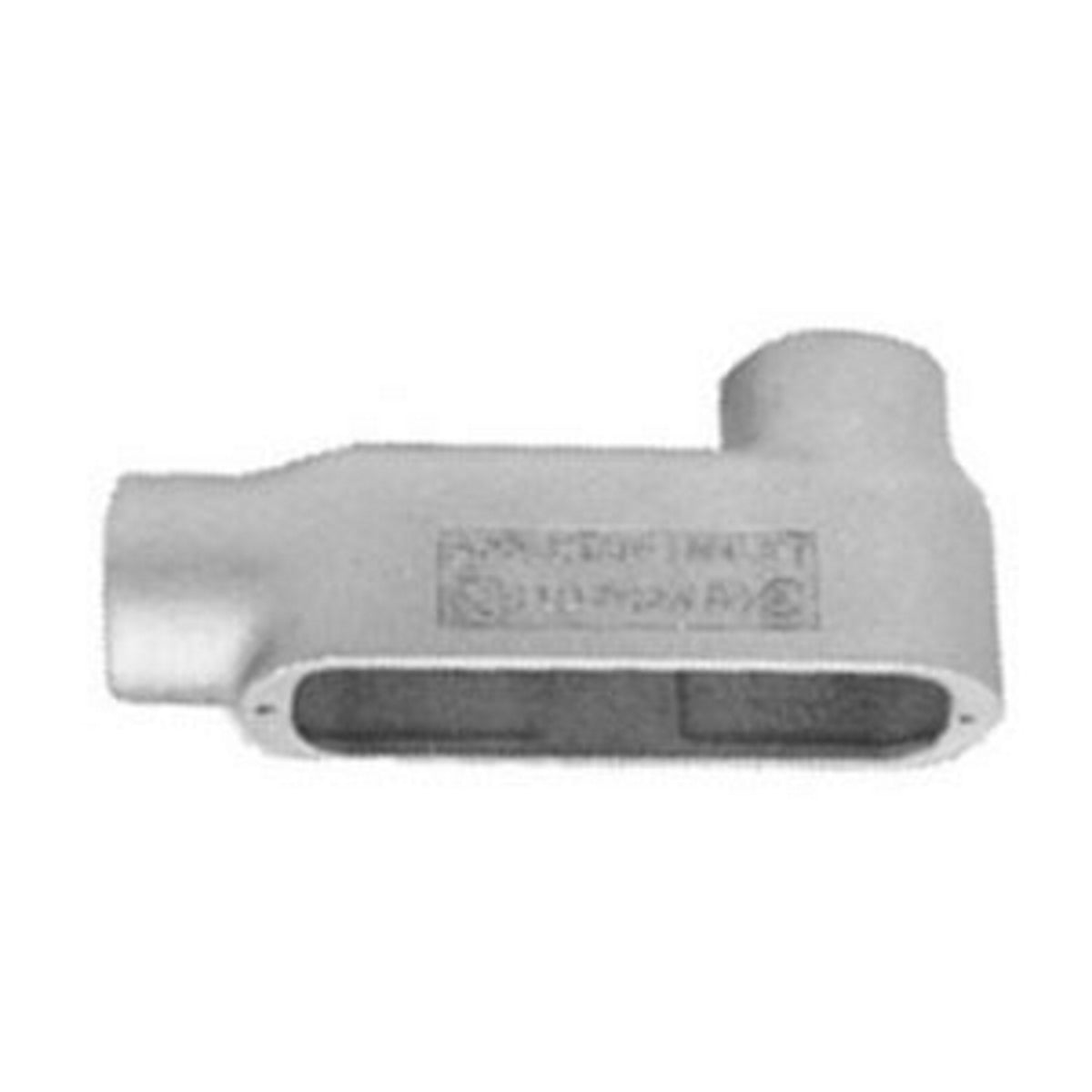

Appleton LB300-M Type LB Conduit Body 3 Inch Malleable Iron

Product Description

The Appleton LB300-M is a Type LB conduit body designed for use with rigid steel, rigid aluminum conduit, and intermediate metal conduit (IMC). It features a hub size of three inches and provides access for maintenance and modification in electrical conduit systems. The body has a length of thirteen point six nine inches and a height of six inches, made from malleable iron. Its finish consists of triple coating with zinc electroplate, chromate, and epoxy powder coat for enhanced durability.

• Hub Size: 3 Inch
• Material: Malleable Iron
• Connection Type: Tapered Female Threaded

Product Highlights

This conduit body aids in pulling fittings, connecting and changing directions of conduit runs, and allowing access to conductors for maintenance. Its design includes integral bushings to protect conductor insulation, ensuring reliability and longevity.

Product Information

Standard Information

• Catalog Number: LB300-M
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, Epoxy Powder Coat)
• Application: Suitable for use with Rigid Steel, Rigid Aluminum Conduit, and IMC
• Enclosure: NEMA FB-1
• Hub Location: 90 Degree
• Connection: Tapered Female Threaded
• Number of Hubs: 2
• Capacity: 177 Cubic Inches
