Product Description

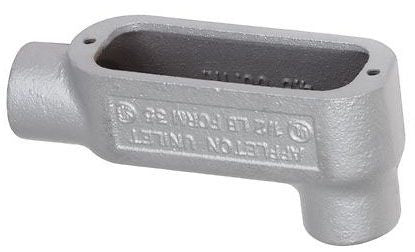

The Appleton LB200-M is a type LB conduit outlet body with a hub size of two inches. It is designed for use with rigid steel and aluminum conduit, as well as IMC. The product is constructed from malleable iron and has a capacity of seventy-three cubic inches. The surface mounting type and taper female threaded connection provide reliable installation.
- Constructed from durable malleable iron
- Capacity of seventy-three cubic inches
- Compatible with rigid steel and aluminum conduit
Product Highlights
This conduit outlet body provides access to conductors for maintenance and connects different sections of conduit. It features a tapered female thread for a tight fit and includes integral bushings to protect wire insulation.
Product Information
Standard Information
-
Brand: Appleton
-
MPN: LB200-M
Technical Specifications
-
Material: Malleable Iron
-
Finish: Triple-Coated Zinc Electroplate, Chromate And Epoxy Powder Coat
-
Dimensions: Ten point five six inches long x four point six three inches high
-
Enclosure: NEMA FB-1
-
Hub Size: Two inches
-
Connection Type: Tapered FNPT
-
Number of Hubs: Two
-
Country of Origin: Mexico
