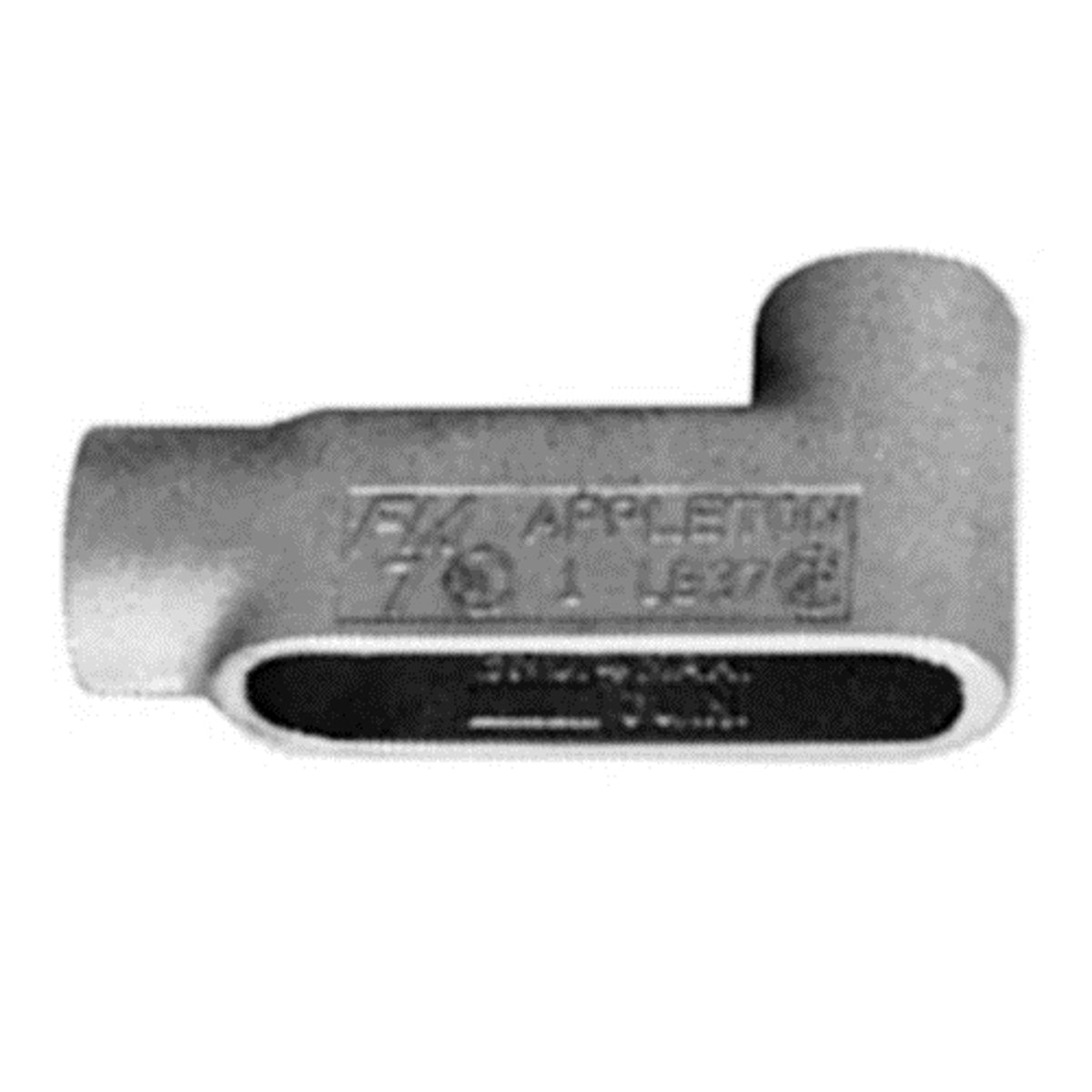

Appleton LB17SA Type LB Conduit Body, 1/2 inch, Cast Aluminum, Epoxy Powder Coated

Product Description

The Appleton LB17SA is a Type LB Conduit Body made of cast aluminum with an epoxy powder coating. This fitting is designed for use with rigid steel, rigid aluminum conduit, and intermediate metal conduit (IMC). It features a hub size of one half inch, a length of four point five six inches, and a height of two and one-quarter inches. The connection type is tapered female threaded. It meets industry standards including UL 514A and UL 514B.

• Hub Size: 1/2 inch
• Material: Aluminum
• Application: Suitable for rigid steel and aluminum conduits

Product Highlights

This conduit body serves multiple functions in conduit systems, including bending, providing openings for splicing, and allowing connections for branch runs. It has smooth, rounded integral bushings in hubs that protect conductor insulation.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Material: Aluminum

Technical Specifications

• Catalog Number: LB17SA
• UPC: 781381600729
• Hub Size: 1/2 inch
• Length: 4.56 inches
• Height: 2-1/4 inches
• Connection: Tapered Female Threaded
• Finish: Epoxy Powder Coat
• Special Features: Allows for easy wire pulling, fits flush against flat surfaces, and is interchangeable with Crouse-Hinds Form 7 bodies.
