Product Description

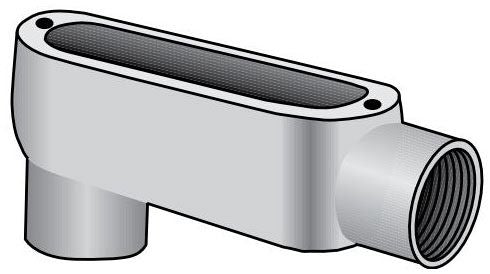

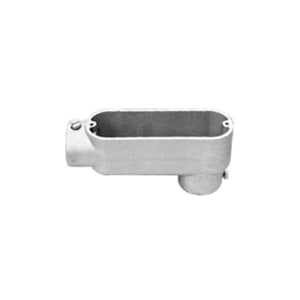

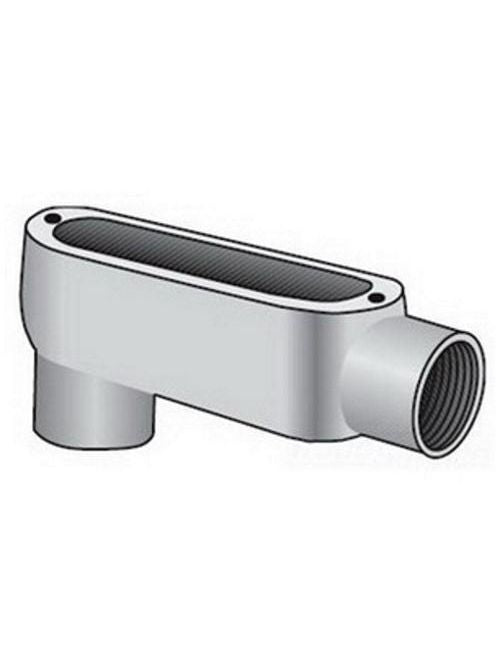

The Appleton LB150-A is a type LB conduit body made from pressure cast aluminum. It features a hub size of one and one-half inches. The length of the conduit body is seven and seven-eighths inches, with a height of three and eighty-one hundredths inches. This conduit body is designed for use with rigid steel, rigid aluminum conduit, IMC, and EMT.
- Aluminum construction for durability
- UL and CSA approved standards ensure safety compliance
- Allows multiple configurations in conduit systems
Product Highlights
Suitable for hazardous locations and provides access for conductor maintenance. This conduit body allows bends in conduit systems and creates openings for splicing.
Product Information
Standard Information
-
Brand: Appleton
-
Manufacturer: OZ-Gedney Co.
Technical Specifications
-
Catalog Number: LB150-A
-
Material: Copper-Free Aluminum
-
Finish: Epoxy Powder Coat
-
Connection Type: Tapered Female Threaded
-
Capacity: 35 Cubic Inches
-
Hub Size: 1-1/2 Inch
-
Length: 7.875 Inches
-
Height: 3.81 Inches
-
Certifications: UL 514A, UL 514B, CSA C22.2
-
Application: For use with Rigid Steel, Rigid Aluminum, IMC, and EMT
