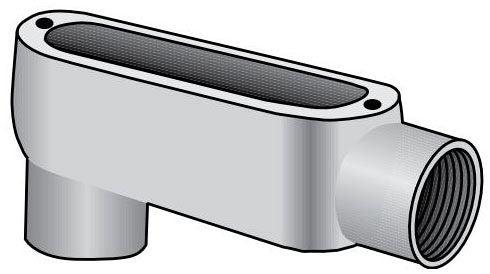

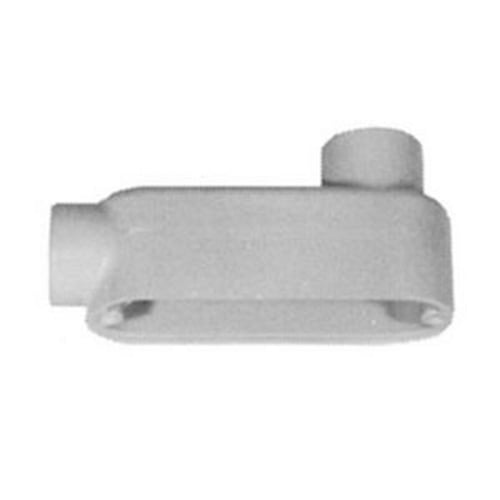

Appleton LB125-A Conduit Outlet Body, Type LB, 1-1/4 Hub

Product Description

The Appleton LB125-A Conduit Outlet Body is designed for connecting and changing the direction of conduit runs. This conduit body allows for branch connections and provides access for splicing conductors. It features a hub size of one and one-fourth inches, suitable for various conduit types.

• Forms bends and connections in conduit systems
• Constructed from pressure cast aluminum with an epoxy powder coat finish
• Provides access to conductors for maintenance and repairs

Product Highlights

This product is ideal for use with rigid steel, aluminum conduit, IMC, and EMT. It provides durable and reliable performance in electrical installations.

Product Information

Standard Information

• Brand: Appleton
• MPN: LB125-A

Technical Specifications

• Form: 85
• Capacity: 34.8 cu-in
• Hub Size: 1-1/4 in
• Material: Pressure Cast Aluminum
• Finish: Epoxy Powder Coated
• Enclosure: NEMA FB-1
• Dimensions: 7.88 in L x 3.88 in H
• Mounting Type: Surface
• Number of Hubs: 2
• Connection Type: Tapered FNPT
• Country of Origin: India
