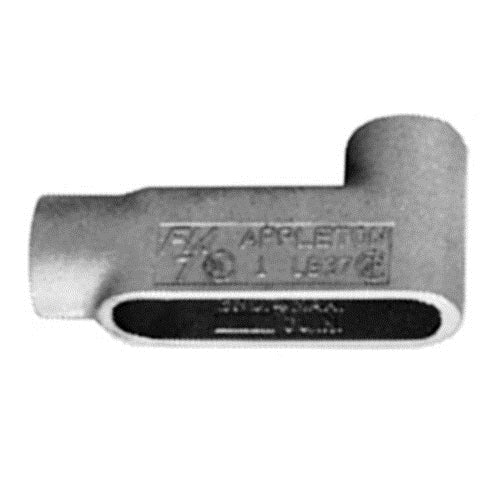

Appleton LB107 Type LB Conduit Outlet Body, 4 in Hub, Form 7, 244 cu-in

Product Description

The Appleton LB107 is a conduit outlet body designed for use with rigid steel, aluminum, and IMC conduit. This outlet body features a four-inch hub and is shaped in Form 7, providing a cubic capacity of two hundred forty-four cubic inches. Made from Grayloy iron, it is suitable for installation in wet locations.

• Integral bushing protects conductor insulation
• Interchangeable with Crouse-Hinds Form 7 bodies
• Flat back design enhances cubic content for easier wire pulling

Product Highlights

This outlet body includes a unique Wedge-Lok clip cover design that allows for easy removal, without damaging the body. It also features pan head cover screws for better torque and seating.

Product Information

Standard Information

• Brand: Appleton
• Part Number: Q0660

Technical Specifications

• Application: For Rigid Steel/Aluminum and IMC Conduit
• Capacity: 244 cu-in
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 12.69 in L x 6.94 in W x 7.06 in H
• Enclosure: NEMA FB-1
• Finish: Triple Coated
• Form: Form 7
• Hub Size: 4 in
• Material: Grayloy Iron
• Manufacturing Standards/Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514A/514B/E2527, C22.2 No. 18.3/065183 Certified
• Mounting Type: Surface
• Number of Hubs: 2
• Package Height: 5.1 in
• Package Length: 13.3 in
• Package Weight: 18.4 lb
• Package Width: 9.7 in
• Type: Type LB
