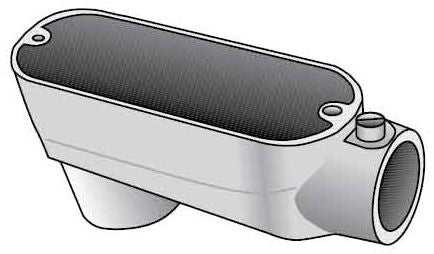

Appleton LB100ATW 1 Inch Aluminum Lb Emt Conduit Body

Product Description

The APPLETON LB100ATW is a 1-inch aluminum LB-type conduit body designed for use with EMT (electrical metallic tubing) raceway systems. This fitting provides a 90-degree change of direction in a conduit run while also allowing access for wire pulling and splicing. The aluminum construction keeps the body lightweight and corrosion-resistant. Electricians install this fitting where a conduit run must turn from horizontal to vertical — or make a back-entry turn — in both exposed and concealed wiring applications. At 0.580 pounds, it is easy to handle during overhead or tight-space installations.

This conduit body is suited for commercial and industrial wiring installations where EMT conduit is the raceway of choice. It is commonly used in panel feeders, branch circuit runs, and equipment connections that require a pull point or directional change. The LB configuration — with the opening on the back — makes it practical where wall or ceiling space limits access from the side or front of the fitting.

Key Features

• LB-type body provides a 90-degree back-entry pull point for wire pulling and inspection access
• 1-inch trade size matches standard 1-inch EMT conduit and fittings
• Aluminum construction offers lightweight handling and corrosion resistance
• Removable cover plate allows access to conductors after installation
• Compatible with EMT raceway systems in commercial and industrial applications

Compatibility

Designed as an OEM-style fitting for use with 1-inch EMT conduit systems in standard electrical raceway installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify absence of voltage before pulling conductors through the body. Do not exceed the conduit fill capacity as defined by NEC Chapter 9 tables. Secure the conduit body and conduit connections firmly before pulling wire to prevent movement during installation.

Technical Specifications

• Trade Size: 1 inch
• Body Type: LB
• Conduit System: EMT
• Material: Aluminum
• Package Dimensions (L x W x H): 8.700 x 6.600 x 0.840 inches
• Weight: 0.580 pounds
• UPC: 78312632943

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LB100ATW
