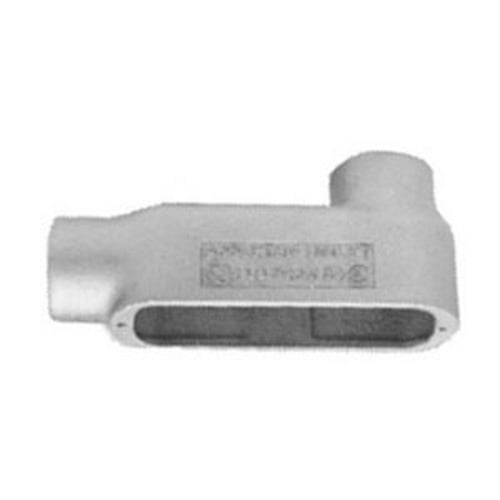

Appleton LB100-M Unilet Type LB Conduit Outlet Body, 1 in Hub, Form 35

Product Description

The Appleton LB100-M is a conduit outlet body designed for connecting and changing the direction of conduit runs. This type LB conduit body features a one-inch hub and is built from malleable iron with a triple-coated finish for durability. It supports installation in both rigid steel and aluminum conduits. The design allows for maintenance access and splicing through its pulling fittings.

• Hub Size: 1 inch
• Material: Malleable iron
• Capacity: 12.5 cubic inches

Product Highlights

Ideal for conduit routing and accessibility, this outlet body ensures a strong connection and is suited for various electrical applications.

Product Information

Standard Information

• Manufacturer: Appleton
• Type: Type LB

Technical Specifications

• Form: 35
• Finish: Triple Coated
• Dimensions: 6.25 inches L x 2.56 inches W x 2.69 inches H
• Hub Size: 1 inch
• Enclosure: NEMA FB-1
• Connection Type: Tapered FNPT
• Installation: Threaded
• Country of Origin: Mexico
