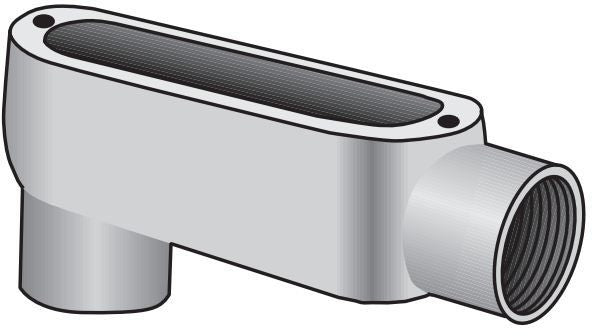

Appleton LB-50 Malleable Iron Lb Conduit Body 1/2 in

Product Description

The APPLETON LB-50 is a malleable iron LB-style conduit body designed for use in electrical raceway systems. LB conduit bodies provide a 90-degree change of direction with rear access, allowing electricians to pull wire through conduit runs and make directional changes without bending conduit. The LB-50 is sized for 1/2-inch conduit trade size, making it a standard fit for residential and light commercial wiring applications. Malleable iron construction provides durability and resistance to mechanical stress in exposed or partially exposed installations.

This conduit body is used in EMT, rigid metal, and intermediate metal conduit systems where a 90-degree pull point or direction change is required. It is commonly installed in exposed conduit runs on walls, ceilings, and equipment connections in commercial, industrial, and residential service work. The rear-access cover allows for wire pulling and future maintenance without dismantling the conduit run.

Key Features

• LB configuration provides 90-degree direction change with rear cover access
• Malleable iron construction for mechanical durability in exposed installations
• 1/2-inch trade size fits standard 1/2-inch EMT, rigid, and IMC conduit
• Removable cover plate for wire pulling and future access
• Compatible with standard conduit hubs and locknuts for that trade size

Compatibility

Designed as an OEM-style replacement and standard-fit conduit body for 1/2-inch trade size raceway systems using EMT, rigid metal conduit, or intermediate metal conduit.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the conduit run before opening or working within any conduit body. Ensure the cover gasket is properly seated and the cover screws are fully tightened after wire pulling to maintain the enclosure rating. Do not exceed the conduit body's listed fill capacity as required by NEC Article 314.

Technical Specifications

• Trade Size: 1/2 inch
• Body Style: LB
• Material: Malleable Iron
• UPC: 78312632755

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LB-50
