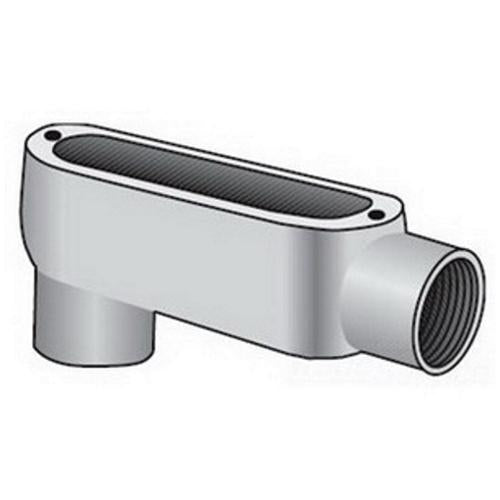

Appleton LB-200 Conduit Outlet Body 2 in Hub

Product Description

The APPLETON LB-200 conduit outlet body features a 2-inch hub and is designed for rigid/IMC conduit applications. The smooth, rounded integral bushing in hubs protects conductor insulation. Accurately tapped, tapered threads provide tight, rigid joints and excellent ground continuity. Form 35 malleable iron UNILETS are high tensile strength and ductility.

• Smooth, rounded integral bushing in hubs protects conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• High corrosion resistance, high impact and shock resistance

Product Highlights

The APPLETON Conduit Outlet Body is suitable for use in concrete and is raintight when used with gasketed covers.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LB-200
• Country of Origin: MX

Technical Specifications

• Brand: Appleton
• Part Number #: LB200
• SKU #: 2379972
• Capacity: 77.5 cu-in
• Enclosure: NEMA FB-1
• Finish: Aluminum Enamel/Zinc Electroplated
• Hub Size: 2 in
• Type: Type LB
• Connection type: Tapered FNPT
• Country of origin: MX
• Material: Malleable Iron
• Mounting type: Surface
• Manufacturer Name: Emerson Electric
• UNSPSC: 39131708
• UPC: 00783126328554
