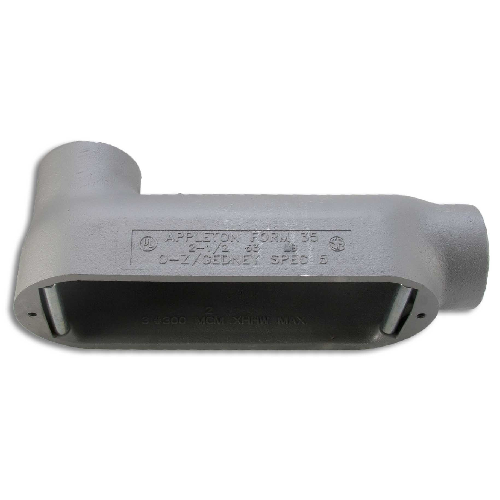

Appleton LB-150 Type LB Form 85 U.(A)

Product Description

The APPLETON LB-150 is a Type LB Form 85 U.(A). Form 35 Unilet conduit bodies provide room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity. It is suitable for rigid/IMC conduit.

• Serves as pulling fittings
• Makes bends in conduit system
• Provides openings for splicing
• Connects and changes direction of conduit runs

Product Highlights

The APPLETON LB-150 ensures tight, rigid joints and excellent ground continuity. It allows connections for branch runs and permits access to conductors for maintenance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LB-150

Technical Specifications

• Manufacturer: Appleton
• Item model number: APPLB150A
• Hub Size: 1-1/2 in
• Material: Malleable Iron
• Mounting Type: Surface
• Number of Hubs: 2
• Capacity: 35.3 cu-in
• Connection Type: Tapered FNPT
• Enclosure: NEMA FB-1
• Finish: Triple Coat
• Form: 35
• Type: Type LB
• Application: For Rigid/IMC Conduit
• Standard & Approvals: UL 514B, E2527 Listed, CSA C22.2 NO 18.3 Certified, 065183 Certified, RoHS Compliant
