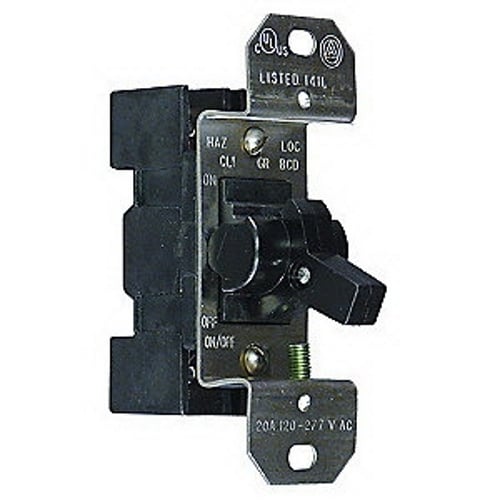

Appleton LAB21 Sealed Switch; 120 - 277 Volt AC, 20 Amp, 1-Pole, NEMA 7CD, 9EFG

Product Description

The Appleton LAB21 is a sealed switch designed for 120 to 277 Volt AC applications with a 20 Amp rating. This single-pole toggle switch features an enclosure rated NEMA 7CD and 9EFG, making it suitable for installation in harsh environments. The durable construction utilizes malleable iron, ensuring reliable performance in demanding conditions.

• Voltage Rating: 120 - 277 Volt AC
• Amperage Rating: 20 Amp
• Enclosure Type: NEMA 7CD, 9EFG

Product Highlights

This product is ideal for chemical plants, petrochemical facilities, and refineries. It prevents arcing of enclosed switches in ignitable atmospheres, ensuring safety during operation.

Product Information

Standard Information

• Catalog Number: LAB21
• Manufacturer: Appleton Electric

Technical Specifications

• Voltage Rating: 120 - 277 Volt AC
• Amperage Rating: 20 Amp
• Number of Poles: 1
• Material: Malleable Iron
• Height: 4.63 inches
• Width: 3 inches
• Depth: 1.6 inches
• Standard: UL 894, UL 1203
