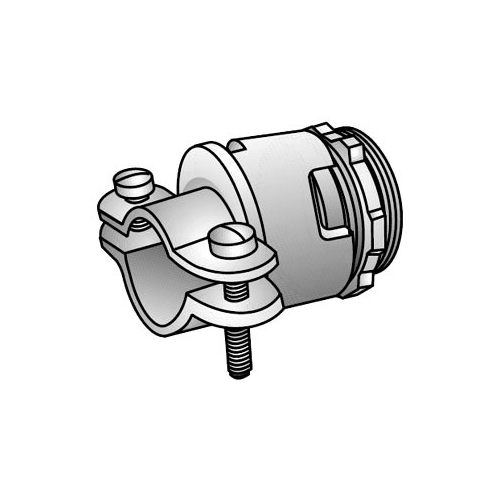

Appleton KC-50 Cable Connector 1/2 to 29/32 in

Product Description

The APPLETON KC-50 cable connector is designed for grounding and securing armored cable, flexible metal conduit, and interlocked metal clad cables to boxes and enclosures. It also secures non-metallic and service entrance cables. Features a male hub NPS thread connection and is centre stopped.

• Male hub NPS thread connection
• Centre stopped
• ARRA Compliant
• Suitable for armored, FMC, interlocked metal clad, non-metallic, and service entrance cables

Product Highlights

This cable connector is ideal for various cable types, ensuring secure and grounded connections in electrical systems.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: KC-50
• Country of Origin: Mexico

Technical Specifications

• Brand: Appleton
• Part Number #: KC50
• SKU #: 28775
• Cable Openings: 1/2 to 29/32 in
• Dimensions: 1-9/16 in L x 1-7/8 in W
• Finish: Zinc Electroplated
• Suitable For Use With: Armored/FMC/Interlocked Metal Clad/Non-Metallic/Service Entrance Cable
• Type: Type KC
• Material: Malleable Iron
• Manufacturer Name: Emerson Electric
• UNSPSC: 39121419
• Series: KC
• Country of Origin: Mexico
• Throat Type: Non-Insulated
• Cord Size: 1/2 to 29/32
• Installation: (2) Screw, ClA
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit/Metal Clad Cable/Non-Metallic Cable/SE Cable
• Trade Size: 1/2
• Cable Opening: Single
• Approval: UL 514B, CSA C22.2
