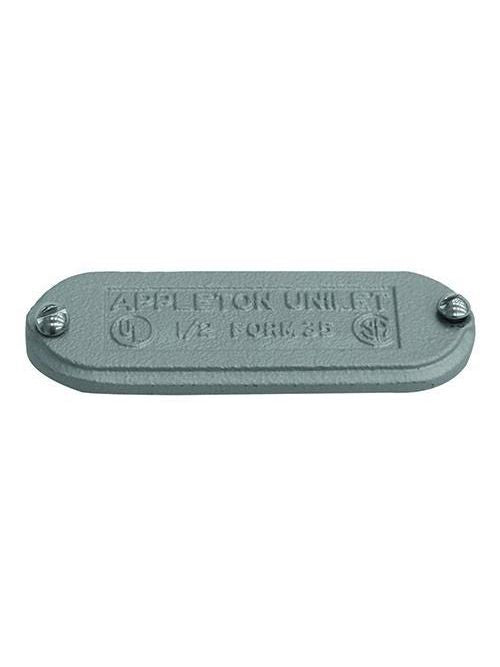

Appleton K250&300-CM 2-1/2 and 3 inches Form 35 Cover

Product Description

The APPLETON K250&300-CM is a Form 35 UNILETS blank cover with screw, designed for use with Form 35 Unilet conduit outlet bodies. It features a hub size of 2-1/2 to 3 inches and screw-in mounting. Constructed from cast malleable iron with a triple-coat finish, it provides durability and corrosion resistance.

• Form 35
• Screw-In Mounting
• Cast Malleable Iron Material

Product Highlights

This blank cover provides a secure and reliable fit for conduit systems, offering enhanced protection and longevity.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: K250&300-CM
• Country of Origin: Mexico

Technical Specifications

• Type: Blank Cover With Screw
• Brand: Appleton
• Finish: Zinc Electroplate/Chromate/Epoxy Powder Coat
• Hub Size: 2.5-3 in
• Material: Malleable Iron
• Sub Brand: UNILETS
• Applications: For Form 35 Unilet Conduit Outlet Bodies
• Catalog Number: K250&300-CM
• Manufacturer: Appleton Electric
• Country of Origin: Mexico
• Made in USA: No
• Form: 35
• Mounting: Screw
• Special Features: Stainless steel screws; Domed to provide extra wiring space; Wiring capacity: 30 CU-IN as per NEC 314.16(A)
• Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
• UPC: 781381471800
• GTIN: 00781381471800
• Item Type: Blank Cover With Screw
• Trade Size: 2-1/2 Inch, 3 Inch
• Approval: UL 514A/514B, CSA C22.2
• Application: Serve as Pulling Fitting, Make Bend in Conduit System, Provide Opening for Splicing, Connect and Change Direction of Conduit Run, Allow Connection for Branch Run, Permit Access to Conductor for Maintenance
• Cover Type: Conduit Body Blank Cover
• Installation: Screw-On Mount
• Form/Series: FM35/FM85
• Diameter: 3 in, 2 1/2 in
• Includes: Screws
• Suitable For Use With: Form 35™ UNILETS™ Conduit Outlet Body
