Appleton JBX-50L 1/2 inches Base Unilet

Product Description

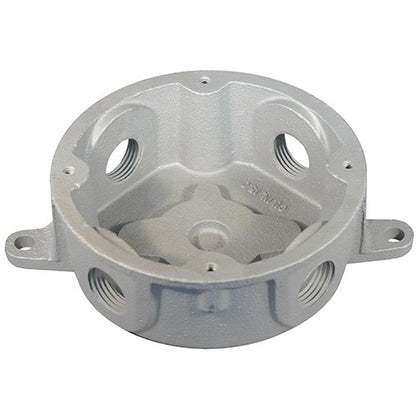

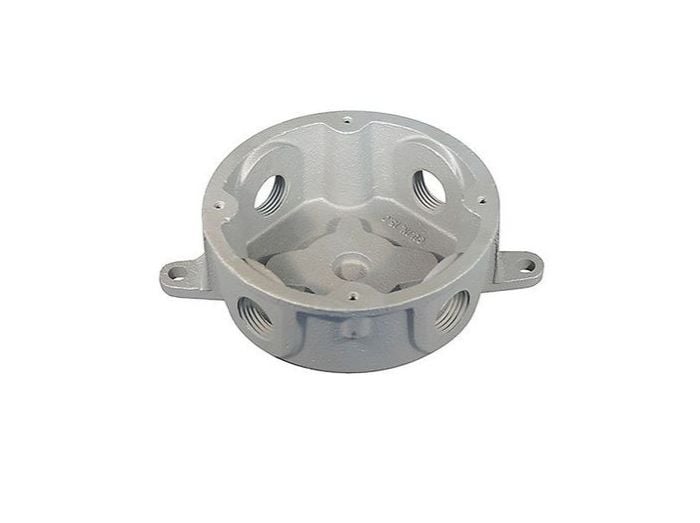

The APPLETON JBX-50L 1/2" Base Unilet is a conduit outlet box with (4) 1/2" hubs made of malleable iron. It serves as a pulling fitting and permits access to conductors for splicing and maintenance. Suitable for exposed or concealed installations.

• Smooth, rounded integral bushings in hubs protect conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• Roomy interiors provide more wiring space

Product Highlights

Connect and change the direction of conduit runs with Appleton's JBX series outlet box. It features tapped openings and close-up plugs.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: JBX-50L

Technical Specifications

• Material: Malleable Iron
• Diameter: 1/2 in
• Product Series: JB
• Manufacturer Part Number: JBX-50L
• Manufacturer: Appleton
• Family Series: Appleton Electrical Boxes, JB Series
• Description: UNILETS Outlet Box, Number Of Outlet: 4, Material: Malleable Iron, Size: 1/2 IN, Cable Entry: 4 1/2 IN Tapped Openings, Knockouts: Yes
• Connection Type: Threaded
• Style: JBX
• Shape: X
• Number of Hubs: 4
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Iron
• Cover Included: No
• Gasket Included: No
• Approvals: UL
