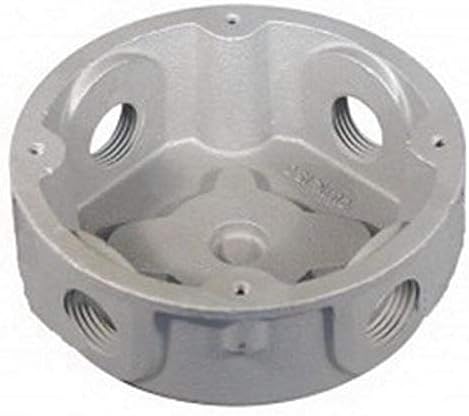

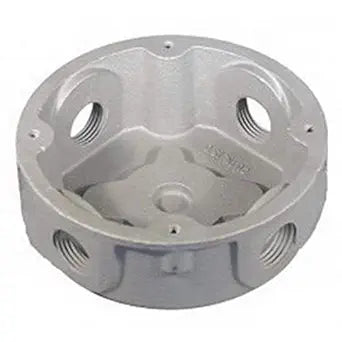

Appleton JBX-50 Conduit Outlet Box 1/2 inches

Product Description

The APPLETON JBX-50 conduit outlet box is a JB series box with a 1/2 inch hub. It is made of malleable iron with a gray, triple-coated finish. It serves as a pulling fitting and provides openings for splicing. It is suitable for exposed or concealed installations.

• Smooth, rounded integral bushings in hubs protect conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• Roomy interiors provide more wiring space

Product Highlights

This conduit outlet box is ideal for use with threaded rigid metal conduit and IMC. It offers high tensile strength, ductility, corrosion resistance, and impact and shock resistance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: JBX-50
• Country of Origin: US

Technical Specifications

• Brand: Appleton
• Part Number #: JBX50
• SKU #: 2233601
• UNSPSC: 39121308
• UPC: 781381465205
• Hub Size: 1/2 in
• Capacity: 15.5 cu-in
• For Use With: Threaded Rigid Metal Conduit and IMC
• Material: Malleable Iron
• Color: Gray
• Finish: Triple Coated
• Installation Type: Screw-In
• Manufacturer: Appleton
• Number of Items: 1
• MPN: JBX-50
• Type: Tapped
• Cover Type: Hub, Blank
• Hub Location: Side
• Mounting Hardware: Screw
• No. Of Hubs: 4
• No. Of Plugs: 2
• Shape: Round
• Depth: 1.31" (Inside), 1.63" (Outside)
