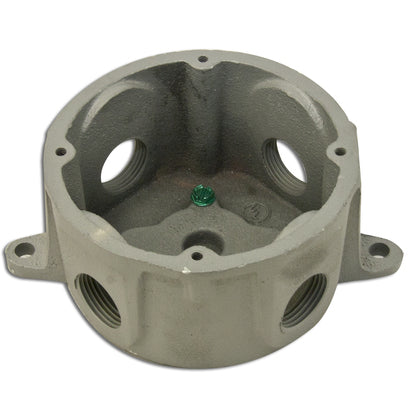

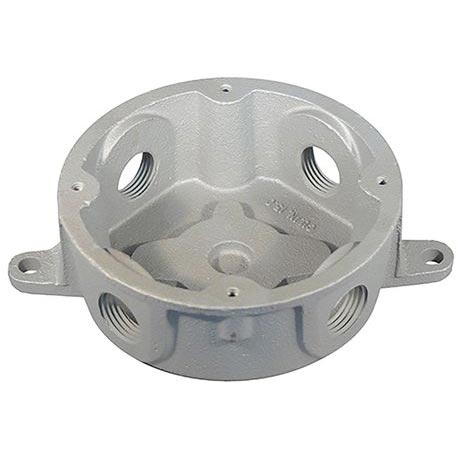

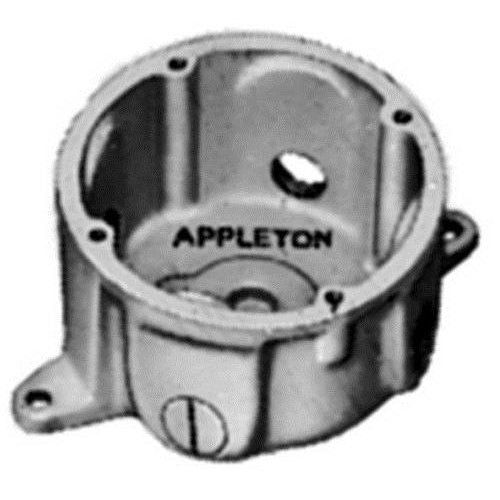

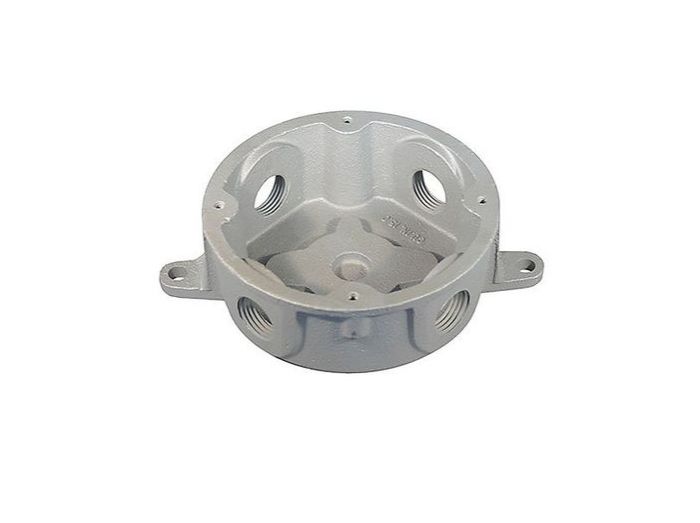

Appleton JBDX-75L Unilets Conduit Outlet Box With Mounting Lugs 3/4 in Hub

Product Description

The APPLETON JBDX-75L Unilets Conduit Outlet Box features mounting lugs and a 3/4 in hub. It serves as a pulling fitting and provides openings for splicing. The box is suitable for use with threaded rigid metal conduit and IMC. It has smooth, rounded integral bushings in hubs to protect conductor insulation.

• Features smooth, rounded integral bushings in hubs to protect conductor insulation
• Has accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• Roomy interiors provide more wiring space

Product Highlights

This malleable iron, triple-coated outlet box is suitable for exposed or concealed installations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: JBDX-75L
• Country of Origin: MX

Technical Specifications

• Application: To serve as pulling fittings and provides openings for splicing
• Capacity: 23 cu-in
• Color: Gray
• Hub Size: 3/4 in
• Material: Malleable Iron
• Mfg Standards/Approvals: ARRA Compliant|UL 514A E2527|NEMA FB-1
• Mounting Type: Lug
• Number of Gangs: 4
• Series: JB Series
• Suitable For Use With: Threaded Rigid Metal Conduit and IMC
• Standard: UL 514A , UL File Number E2527, NEMA FB-1
• Sub Brand: UNILETS
• Type: Outlet Box
• UPC 12: 781381464055
• Product Series: JB
• Manufacturer Part Number: JBDX-75L
• Manufacturer: Appleton
• Family Series: Appleton Electrical Boxes, JB Series
• Connection Type: Threaded
• Style: JBD
• Shape: D
• Number of Hubs: 4
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Iron
• Cover Included: No
• Gasket Included: No
• Approvals: UL
• Diameter: 3/4 in
• Hub Quantity: 4
• Hub Placement: (4) Sides
• Plugs: 2
• Cover Type: Not Included
• Cover Opening Dia.: 4
• Mounting Options: Lugs
• Depth Inside: 2-1/16 in.
