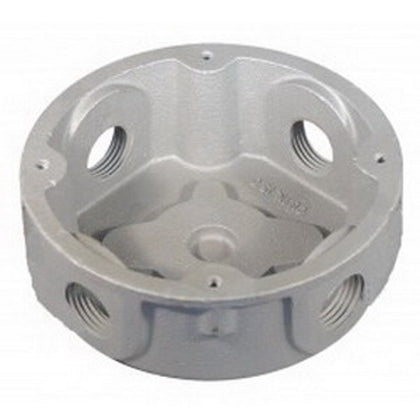

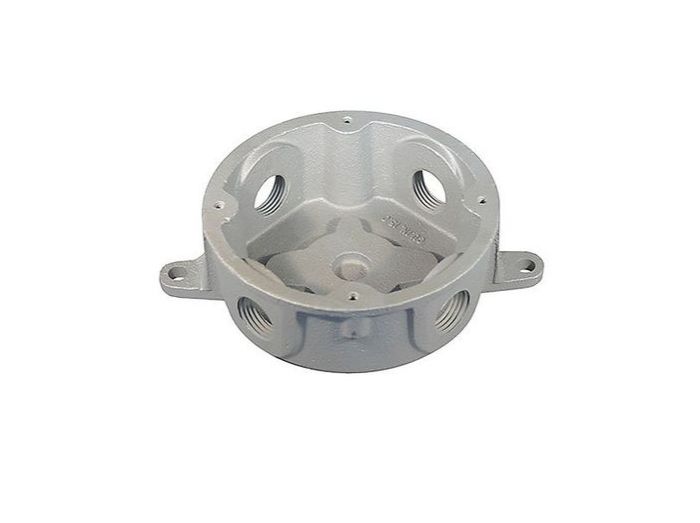

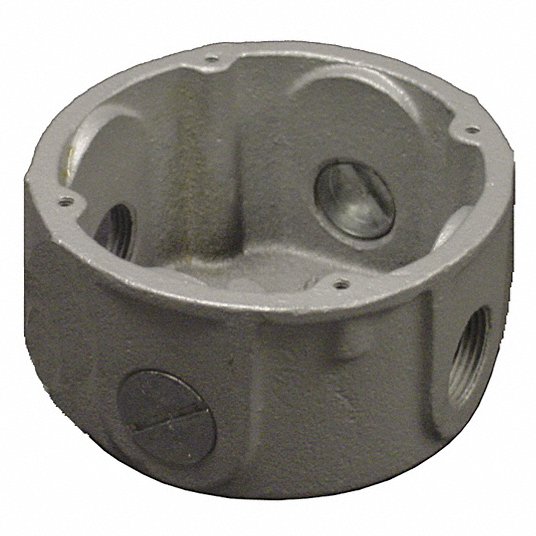

Appleton JBDX-50 JB Series OUTLET BOX 1/2

Product Description

The APPLETON JBDX-50 JB Series outlet box is designed to connect and change the direction of conduit runs. These conduit outlet boxes serve as pulling fittings and permit access to conductors for splicing and maintenance. It is suitable for exposed or concealed installations.

• Smooth, rounded integral bushings in hubs protect conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• Roomy interiors provide more wiring space

Product Highlights

The APPLETON JBDX-50 is a reliable solution for connecting and protecting electrical conduits in various applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: JBDX-50
• Country of Origin: Mexico

Technical Specifications

• Product Series: JB
• Manufacturer Part Number: JBDX-50
• Manufacturer: Appleton
• Family Series: Appleton Electrical Boxes, JB Series
• Description: Rigid Conduit Outlet Box, Type Tapped, Diameter 4.5 Inch, Depth 2.06 Inch Inside, 2.38 Inch Outside, Number of Hubs 4, Hub Location 4 Side, Hub Size 1/2 Inch, Number of Plugs 2, Cover Type Hub, Blank, Shape Round, Material Malleable Iron, Finish Zinc
• Connection Type: Threaded
• Style: JBD
• Shape: Round
• Number of Hubs: 4
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Iron
• Cover Included: No
• Gasket Included: No
• Approvals: UL
• Commodity Level Descrip: Steel Conduit Bodies & Covers
• Brand Name: Unilet, Series JB
• UPC: 781381463904
• UNSPSC: 39121303
• Commodity Code: Steel Conduit Bodies & Covers
• Type: Tapped
• Number of Plugs: 2
• Finish: Zinc Electroplated/Chromate/Epoxy Powder Coated
• Diameter: 4.5 Inch
• Cover Type: Hub, Blank
• Approval: UL 514A
• Mounting Hardware: Screw
• Hub Location: Side
• Hub Size: 1/2 Inch
• Material: Malleable Iron
• Additional Info: Applicable Standard NEMA FB-1
• Compatible Conduit Type: IMC; RMC
• Compatible Conduit Trade Size: 1/2 in
• Trade Size: 1/2 in
• Body Style: X
• Connection Orientation: Multi-Angle
• Body Capacity: 23 cu in
• Hub Style: Threaded
• Type of Body: Conduit Outlet Body
• Standards: UL 514A
• For Use With: IMC; Threaded RMC
• Back Type: Round
• Color: Gray
• Thread Size: 1/2 in
• Thread Gender: Female
• Thread Type: NPT
• Hazardous Location: No
• Item: Conduit Outlet Body
• Depth: 2 1/16 in
• Condition: New
• Country of Origin: United States
