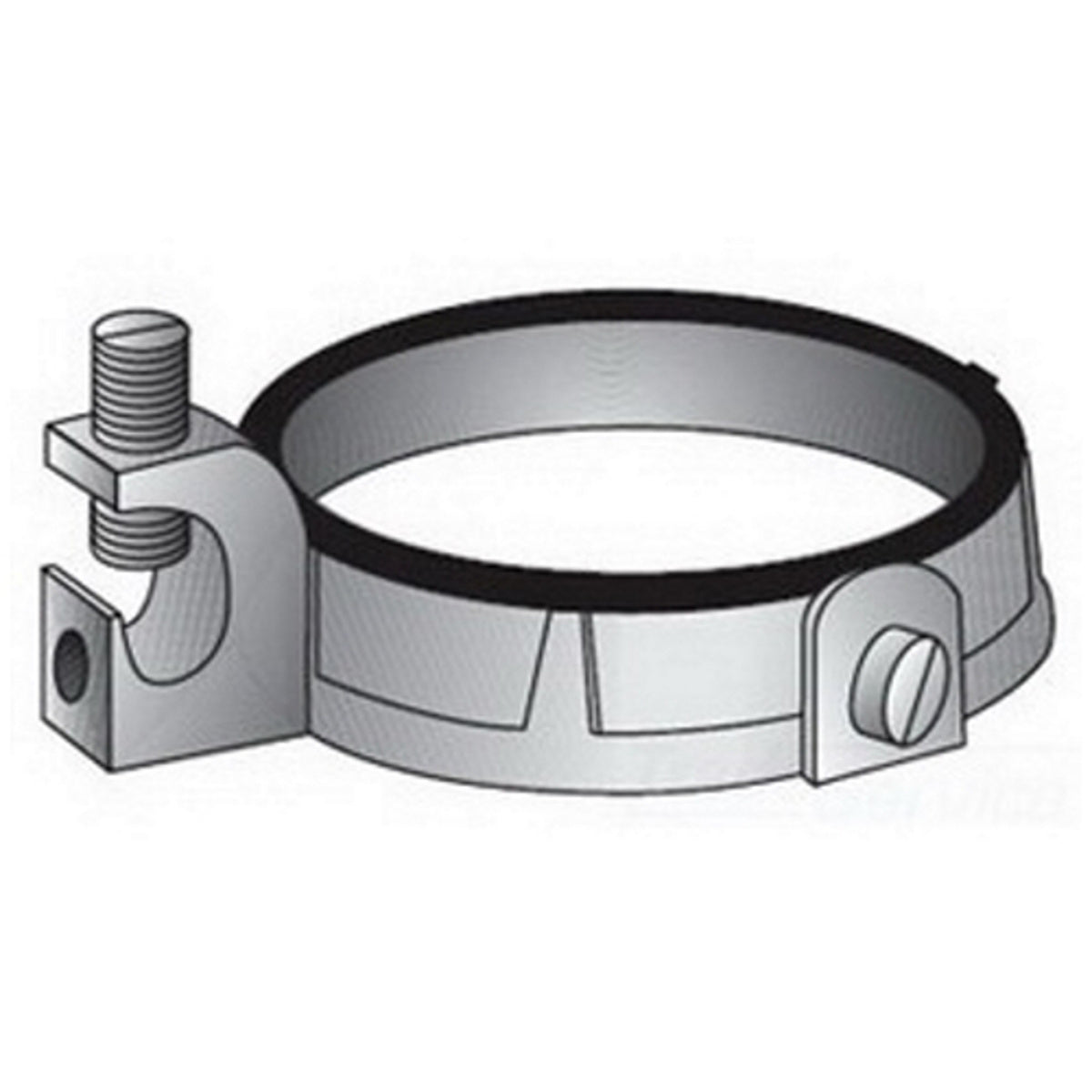

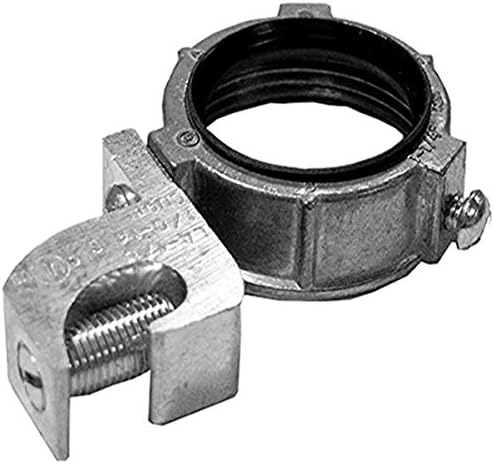

Appleton IBC-250LS-20AC Insulated Grounding Bushing with Lug 2-1/2 in

Product Description

The APPLETON IBC-250LS-20AC is a 2-1/2 inch insulated grounding bushing with lug. Constructed from malleable iron with a zinc-plated finish, this fitting is suitable for rigid/IMC conduit types. It features a set screw connection and an aluminum ground lug material.

• 2-1/2 inch grounding bushing
• Constructed from malleable iron with zinc-plated finish
• Features set screw connection and aluminum ground lug

Product Highlights

Insulated grounding bushing for rigid/IMC conduit with set screw connection and aluminum ground lug.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: IBC-250LS-20AC

Technical Specifications

• Brand: Appleton Emerson
• Material: Malleable Iron
• Finish: Zinc-plated
• Conduit Type: Rigid/IMC
• Connection Type: Set Screw
• Insulation: Insulated
• Fitting Type: Grounding Bushing
• Size: 2-1/2 in
• Threaded: No
• Ground Lug Material: Aluminum
• Temperature Rating: 150 °C
• Wire Size: 14 - 2/0 AWG
