Appleton IBC-125L-20AC Bushings 1.25 inches Replacement GIB-125L-20AC

Product Description

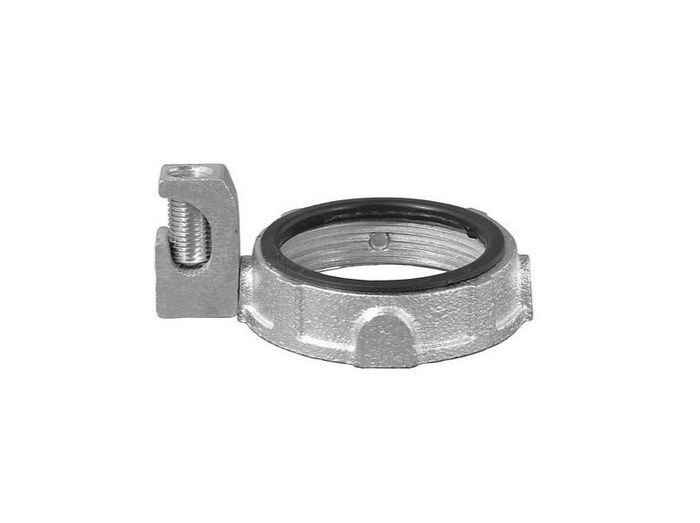

The APPLETON IBC-125L-20AC bushings fasten and ground threadless rigid metal conduit to an enclosure. These insulated grounding bushings feature an aluminum lay-in-lug for copper or aluminum conductors. The plastic liner resists corrosion, chemicals, and temperature extremes. Insulated bushings can be used with a locknut to terminate conduit at an enclosure.

• UL listed for use with copper or aluminum grounding conductors
• GIB-LS Series is provided with a set-screw allowing fitting to lock bushing in any desired position
• Insulating liner material is self-extinguishing

Product Highlights

Insulated grounding bushing with aluminum lay-in-lug, ideal for terminating conduit at an enclosure.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: IBC-125L-20AC

Technical Specifications

• Manufacturer Part Number: IBC-125L-20AC
• Manufacturer: Appleton
• Product Series: GIB-LS
• Family Series: Appleton Bushings, GIB-LS Series
• Description: Insulated Grounding Bushing With Aluminum Lay-In-Lug, Size: 1-1/4 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Tin Plated Lug, Connection: Threaded, Temperature Rating: 150 DEG C, Dimensions: 0.63 IN Height X 2.13 IN Diameter, Cable
• Grounding: Yes
• Hazardous Location: No
• Temperature Rating: 150 °C
• Insulation Material: Plastic
• Mounting: Set Screw
• Composition: Iron
• Trade Size: 1.25 "
• Conduit Fitting: RMC (Rigid Metallic Conduit), IMC (Intermediate Metallic Conduit)
• Approvals: CSA, UL
• Comments: Listed for Ordinary Locations
• Net Weight: 0 lbs
• Gross Weight: 0.24 lbs
