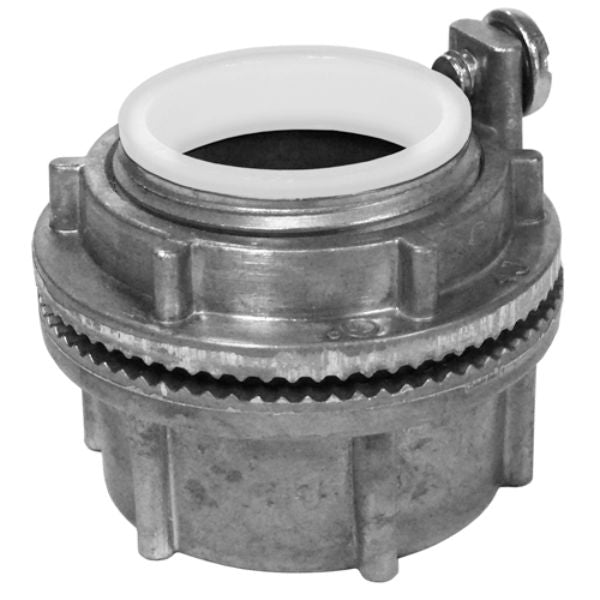

Appleton HUBG75DN Grounding Watertight Conduit Hub 3/4 in IMC/Rigid Conduit

Product Description

The Appleton HUBG75DN is a grounding watertight conduit hub designed for use with IMC and rigid conduit. Constructed from die cast zinc, this high-quality component provides secure connections in electrical installations.

• Rugged metallic construction for mechanical protection
• Insulated throat rated up to 221 degrees F to prevent wire abrasion
• Integral O-ring ensures a watertight seal

Product Highlights

This conduit hub's unique profile enables easy wrenching, while its smooth, accurately tapped threads facilitate installation without hassle.

Product Information

Standard Information

• Brand: Appleton
• MPN: HUBG75DN

Technical Specifications

• Application: Used to connect rigid or IMC conduit to a threadless opening in an enclosure
• Country of Origin: IN
• Dimensions: 1.69 inches OD x 1.72 inches L
• Material: Die Cast Zinc
• Mfg Standards/Approvals: CSA Standard C22.2 No 18.3, CSA Certified 065178, NEMA FB-1, UL 514B Listed
• Package Height: 0.292 inches
• Package Length: 3.6 inches
• Package Weight: 0.27 lb
• Package Width: 5.3 inches
• Series: HUBG
• Size: 3/4 inches
• Suitable For Use With: IMC/Rigid Conduit
• Type: Grounding
