Product Description

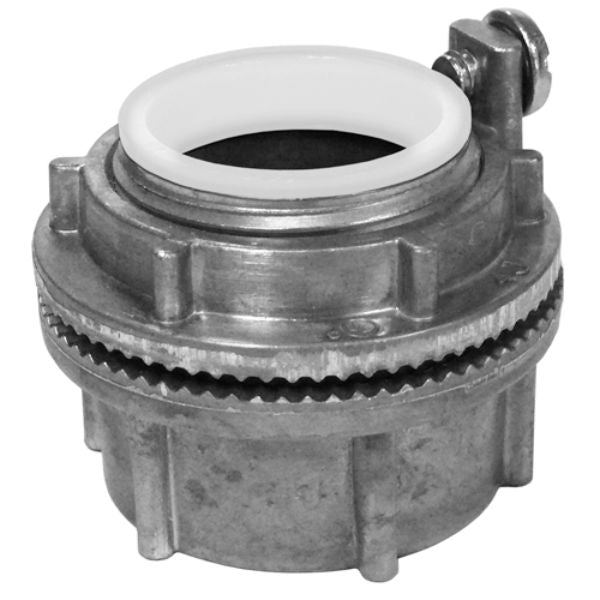

The Appleton HUBG200DN is a grounding watertight conduit hub designed for use with IMC or rigid conduit. The hub is made from die cast zinc for durability and mechanical protection. It is suitable for both indoor and outdoor installations. This conduit hub connects conduit to a threadless opening in an enclosure, ensuring a secure and watertight seal.
- Constructed from rugged die cast zinc
- Features insulated throat rated up to 221 degrees Fahrenheit
- Unique design for easy installation
Product Highlights
This product offers a watertight seal and corrosion resistance, making it ideal for tough environments. The grounding version provides a reliable ground connection.
Product Information
Standard Information
-
Brand: Appleton
-
MPN: HUBG200DN
Technical Specifications
-
Application: Used to connect rigid or IMC conduit to a threadless opening in an enclosure
-
Country of Origin: IN
-
Dimensions: 3.75 inches OD x 2.12 inches L
-
Material: Die Cast Zinc
-
Mfg Standards/Approvals: CSA Standard C22.2 No 18.3, CSA Certified 065178, NEMA FB-1, UL 514B Listed, UL File No. E14814, UL File No. E24264, UL File No. E11853, UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III, NEC 501.10(B)(4), 502.10(A)(3), 502.10(B)(4), 503.10(A)(1)
-
Package Height: 0.46 inches
-
Package Length: 10.5 inches
-
Package Weight: 0.91 lb
-
Package Width: 6.3 inches
-
Series: HUBG
-
Size: 2 inches
-
Suitable For Use With: IMC/Rigid Conduit
-
Type: Grounding
