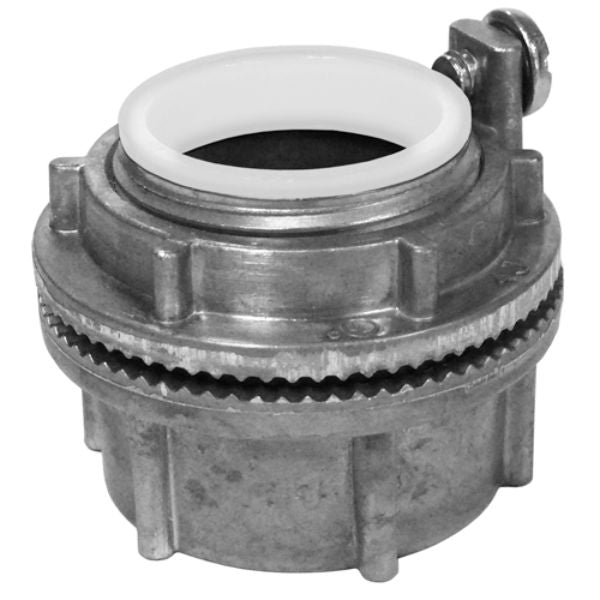

Appleton HUBG150DN 1-1/2 ZDC Water Tight

Product Description

The Appleton HUBG150DN is a watertight conduit hub designed for connecting rigid or intermediate metal conduit to an enclosure. This hub is made of zinc die-cast material and is suitable for Class I, Division 2 applications.

• Insulated and watertight design
• Trade size of one and a half inches
• Integral O-ring for a secure seal

Product Highlights

This hub is ideal for various electrical applications, offering robust construction and a reliable connection.

Product Information

Standard Information

• Brand: Appleton
• Model Number: HUBG150DN

Technical Specifications

• Type: Watertight Hubs
• Material: Zinc Die Cast
• Size: 1-1/2 inches
• Dimensions: 2.75 inches outside diameter, 2.12 inches long
• Thread Length: 0.78 inches
• Body Length: 1.12 inches
• Screw Size: 1/4-20x3/8
• Lug Size: 1.00 inches
• Application: Used to connect rigid or IMC conduit to a threadless opening in an enclosure
• Temperature Rating: 105 degrees Celsius
• Manufacturing Standards: UL Listed, CSA Certified
• Country of Origin: India
