Product Description

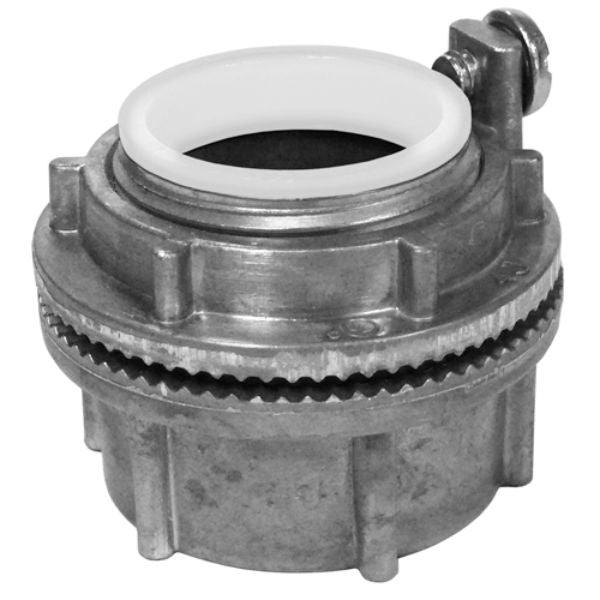

The Appleton HUBG125DN is a grounding watertight conduit hub designed for use with IMC and rigid conduit systems. This product ensures a secure and reliable connection in a variety of electrical applications. Built from die cast zinc, it offers durability and resistance to corrosion.
- Rugged metallic construction for mechanical protection
- Insulated throat rated up to 221 degrees Fahrenheit
- Integral O-ring for watertight seal
Product Highlights
Constructed to prevent wire abrasion and provide a positive ground for external conductors.
Product Information
Standard Information
-
Brand: Appleton
-
MPN: HUBG125DN
Technical Specifications
-
Application: Used to connect rigid or IMC conduit to a threadless opening in an enclosure
-
Country of Origin: IN
-
Dimensions: 2.38 inches OD x 1.93 inches L
-
Material: Die Cast Zinc
-
Mfg Standards/Approvals: CSA Certified, UL Listed
-
Package Height: 0.46 inches
-
Package Length: 10.5 inches
-
Package Weight: 0.555 pounds
-
Package Width: 5.9 inches
-
Series: HUBG
-
Size: 1-1/4 inches
-
Suitable For Use With: IMC/Rigid Conduit
-
Type: Grounding
