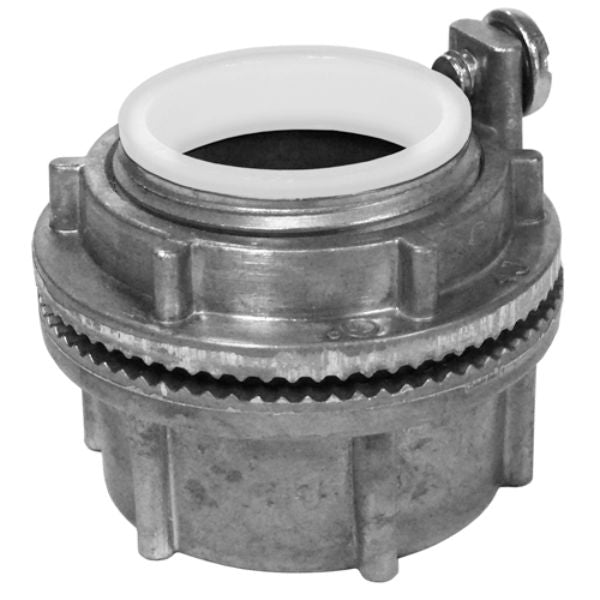

Appleton HUBG100DN Grounding Watertight Conduit Hub, 1 in, For Use With IMC/Rigid Conduit

Product Description

The Appleton HUBG100DN Grounding Watertight Conduit Hub is designed for connecting rigid or IMC conduit to a threadless opening in an enclosure. Made from die-cast zinc, this hub offers durability and mechanical protection.

• Rugged metallic construction to ensure mechanical protection
• Insulated throat rated up to two hundred twenty-one degrees Fahrenheit
• Integral O-ring for watertight seal

Product Highlights

This conduit hub is watertight, corrosion-resistant, and suitable for grounding applications.

Product Information

Standard Information

• Brand: Appleton
• MPN: HUBG100DN

Technical Specifications

• Application: Used to connect rigid or IMC conduit to a threadless opening in an enclosure
• Country of Origin: IN
• Dimensions: Two inches OD x one point eight one inches L
• Material: Die Cast Zinc
• Mfg Standards/Approvals: CSA Standard C22.2 No 18.3, UL 514B Listed, NEC 501.10(B)(4), others
• Package Height: zero point one eight four inches
• Package Length: ten point five inches
• Package Weight: zero point four zero four pounds
• Package Width: six point three inches
• Series: HUBG
• Size: One inch
• Suitable For Use With: IMC/Rigid Conduit
• Type: Grounding
