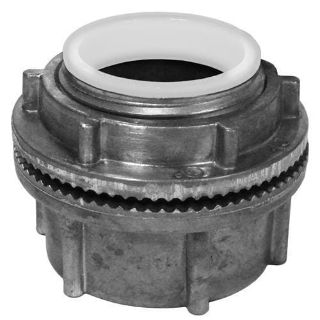

Appleton HUB350DN Watertight Conduit Hub 3-1/2 in for Use With IMC/Rigid Conduit

Product Description

The Appleton HUB350DN is a watertight conduit hub designed for use with IMC or rigid conduit. This product is made from die-cast zinc and is suitable for both wet and dry environments. It connects rigid metal or IMC conduit to a threadless opening in an enclosure. The hub features smooth, accurately machined NPT threads for easy installation.

• Rugged metallic construction for durability
• Insulated throat rated up to 221 degrees Fahrenheit
• Integral O-ring for a watertight seal

Product Highlights

This hub ensures long-lasting performance in various environments. Its design allows easy installation while preventing wire abrasion.

Product Information

Standard Information

• Brand: Appleton
• MPN: HUB350DN

Technical Specifications

• Dimensions: 4.94 inches OD x 2.62 inches L
• Material: Die Cast Zinc
• Application: Connects rigid or IMC conduit to a threadless opening in an enclosure
• Temperature Rating: 105 degrees Celsius
• Standards: CSA Standard C22.2 No. 18.3, UL 514B Listed
• Size: 3-1/2 inches
• Country of Origin: IN
• Suitable For Use With: IMC/Rigid Conduit
