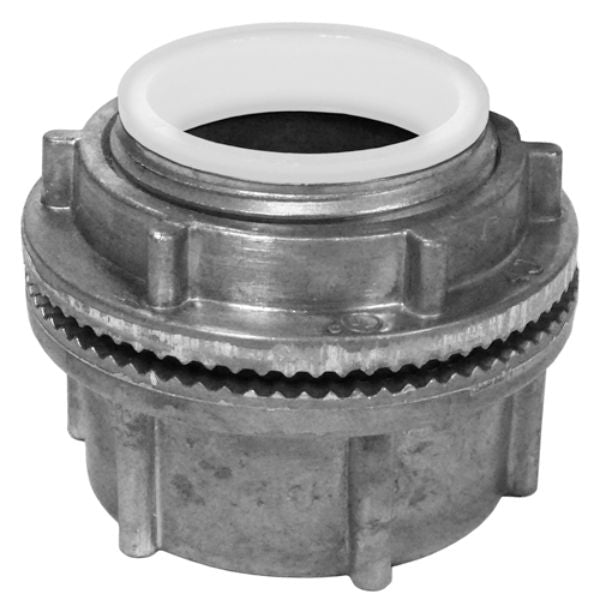

Appleton HUB300DN Watertight Conduit Hub, 3 in, For Use With IMC/Rigid Conduit

Product Description

The Appleton HUB300DN is a watertight conduit hub designed for use with IMC and rigid conduits. This product features a rugged die-cast zinc construction that ensures durability and mechanical protection in various applications.

• Made from die-cast zinc for strength
• Rated for temperatures up to 221 degrees Fahrenheit
• Watertight seal ensures protection against moisture

Product Highlights

This hub connects rigid or IMC conduits to an enclosure, providing a secure and weather-resistant junction point.

Product Information

Standard Information

• Application: Used to connect rigid or IMC conduit to a threadless opening in an enclosure
• Country of Origin: IN

Technical Specifications

• Dimensions: Four point three eight inches OD x two point six two inches L
• Material: Die Cast Zinc
• Temperature Rating: One hundred five degrees Celsius
• Package Weight: Two point one seven five lb
• Size: Three inches
• Series: HUB
• Standards: UL listed, NEMA FB-1, CSA Certified
