Appleton HUB125DN Watertight Conduit Hub 1-1/4 in For Use With IMC/Rigid Conduit

Product Description

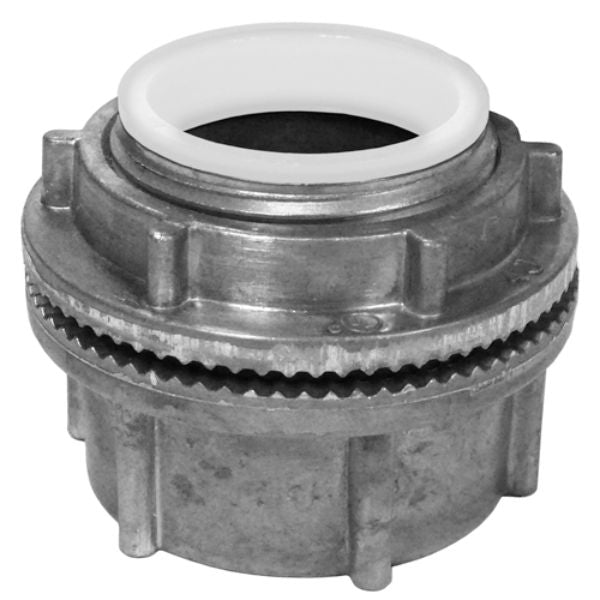

The Appleton HUB125DN is a watertight conduit hub made of die cast zinc. This hub connects rigid or IMC conduit to a threadless opening in an enclosure. It has a size of one and one-quarter inches. The construction ensures durability and resistance to harsh environments.

• Rugged metallic construction
• Insulated throat rated up to 221 degrees F
• Integral O-ring for watertight seal

Product Highlights

Highly effective for setting up watertight connections in sensitive electrical installations. Ideal for use in various industrial environments.

Product Information

Standard Information

• Brand: Appleton
• MPN: HUB125DN

Technical Specifications

• Application: Used to connect rigid or IMC conduit to a threadless opening in an enclosure
• Country of Origin: IN
• Dimensions: 2.38 inches OD x 1.9 inches L
• Material: Die Cast Zinc
• Mfg Standards/Approvals: CSA Standard C22.2 No 18.3, UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III
• Package Height: 0.46 inches
• Package Length: 10.6 inches
• Package Weight: 0.545 pounds
• Package Width: 6.0 inches
• Series: HUB
• Size: 1-1/4 inches
• Suitable For Use With: IMC/Rigid Conduit
