Product Description

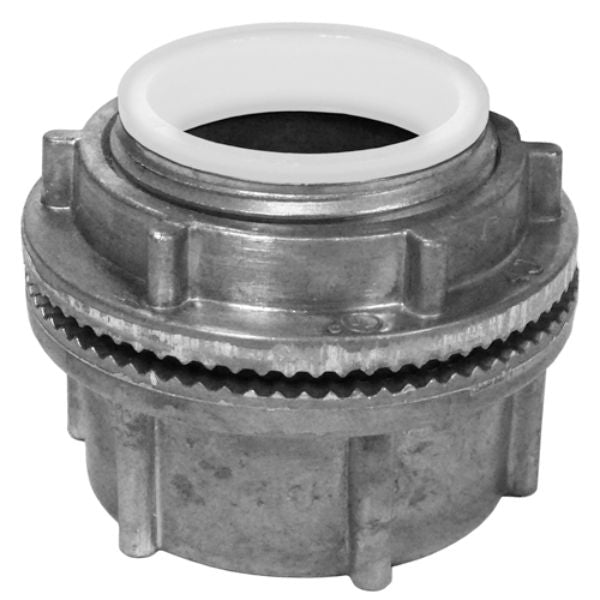

The Appleton HUB100DN is a watertight conduit hub made from die cast zinc. It is designed for connecting rigid or IMC conduit to threadless enclosures. This hub provides mechanical protection and enhances durability in various environments.
- Made of rugged die cast zinc for durability
- Insulated throat rated up to two hundred twenty-one degrees Fahrenheit to prevent wire abrasion
- Integral O-ring ensures a watertight seal
Product Highlights
This hub is ideal for electrical installations requiring reliable connections and weather resistance.
Product Information
Standard Information
-
Brand: Appleton
-
MPN: HUB100DN
Technical Specifications
-
Application: Used to connect rigid or IMC conduit to a threadless opening in an enclosure
-
Country of Origin: IN
-
Dimensions: Two inches OD x one point eight one inches L
-
Material: Die Cast Zinc
-
Mfg Standards/Approvals: CSA Standard C22.2 No 18.3, CSA Certified 065178, NEMA FB-1, UL 514B Listed
-
Package Height: Zero point eighteen inches
-
Package Length: Ten point five inches
-
Package Weight: Zero point three eighty-two lb
-
Package Width: Six point two inches
-
Series: HUB
-
Size: One inch
-
Suitable For Use With: IMC/Rigid Conduit
