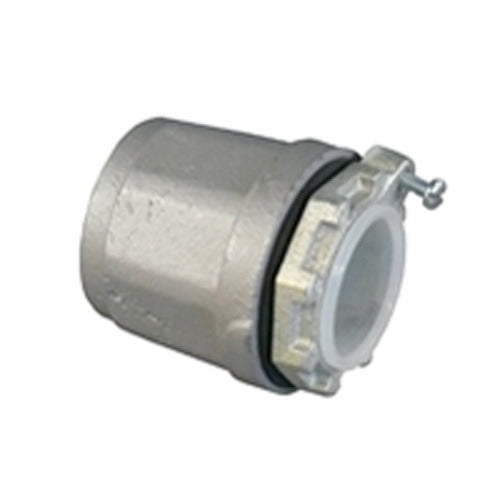

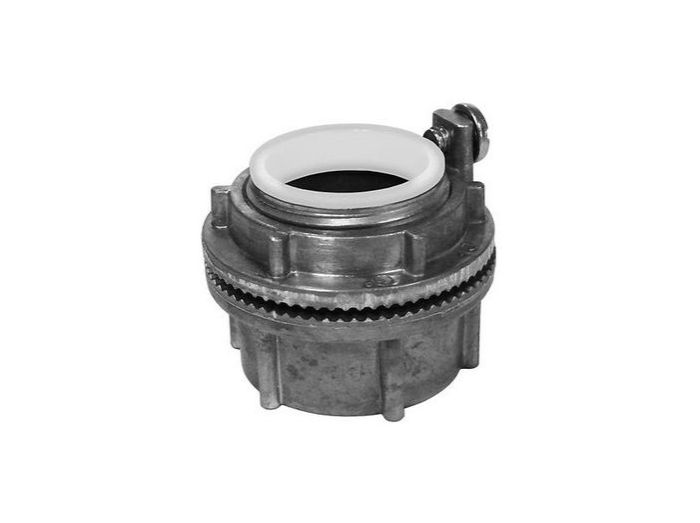

Appleton HUB-400B Insulated Throat Straight Conduit Hub With Bonding Screws, 4 in

Product Description

The APPLETON HUB-400B threaded conduit hubs with bonding screw are general purpose fittings designed for RMC and IMC. They provide threaded terminations in sheet metal enclosures and are suitable for service entrances. The fitting is designed for use to connect rigid metal conduit or IMC to a threadless opening in an enclosure.

• Recessed neoprene O-ring to assure water and dust tight connections
• Provides threaded termination in sheet metal enclosures
• Suitable for service entrance

Product Highlights

Appleton's Uni-Seal rigid conduit hubs eliminate the need for welded hubs. Efficiency of installation is built into the superior design, single wrench installation.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: HUB-400B
• Country of Origin: MX

Technical Specifications

• Finish: Triple Coated
• UNSPSC: 39121311
• Used On: Rigid/Intermediate Metal Conduit
• Approval: UL 514B, UL E11853, CSA C22.3, CSA 065178
• Material: Malleable Iron
• Trade Size: 4 Inch
• Application: For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure
• Ground Type: Bonding Locknut
• Throat Type: Insulated
• Size: 4 in
• Type: Insulated Throat Straight
• Series: HUB
• Suitable For Use With: IMC/Rigid Conduit
• Constructional Feature: Water Tight, Dust Tight
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: HUB400B
• Country of Origin: MX
• EU RoHS Indicator: C
• Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL Listed For Class I, Division 2
• Standards: UL 514BUL File No. E14814CSA 065178/18.3NEMA FB-1RoHS CompliantClass I, Div 2
• UPC 11: 78138150042
• UPC 12: 781381500425
• Brand: Appleton
• Manufacturer: Appleton
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Connection Type: Hub
• Angle: Straight
• Hub Size: 4 "
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• Diameter: 4 in
