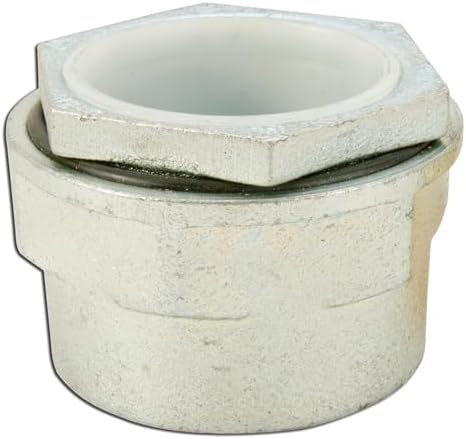

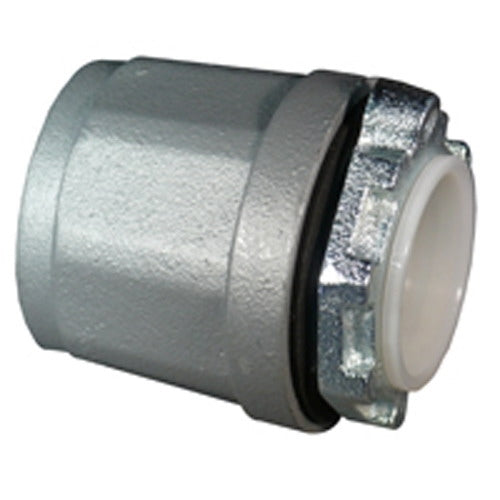

Appleton HUB-400 Straight Conduit Hub 4 in

Product Description

The APPLETON HUB-400 straight conduit hub connects rigid metal conduit or IMC to a threadless opening in an enclosure. Appleton's Uni-Seal rigid conduit hubs eliminate the need for welded hubs. It features a flame-resistant insulated throat that eliminates the need for end bushings and a built-in recessed gasket.

• Appleton’s Uni-Seal rigid conduit hubs eliminate the need for welded hubs
• Efficiency of installation is built into the superior design, single wrench installation
• Patented hex-hub wedge adapter fits nearly flush against the interior side walls of enclosures, provides maximum wiring room

Product Highlights

The HUB-400 provides a vibration-resistant connection between threaded rigid conduit or IMC and enclosures. It is UL and CSA standard, suitable for service entrance and general purpose fitting.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: HUB-400
• Country of Origin: MX

Technical Specifications

• Application: For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: HUB400
• Country of Origin: MX
• EU RoHS Indicator: C
• Series: HUB
• Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL Listed For Class I, Division 2
• Standards: UL 514BUL File No. E14814CSA 065178/18.3NEMA FB-1RoHS CompliantClass I, Div 2
• Type: Straight
• UNSPSC: 39121311
• UPC 11: 78138146300
• UPC 12: 781381463003
• Brand: Appleton
• Manufacturer: Appleton
• Finish: Zinc Electroplate/Chromate/Epoxy Powder Coat
• Material: Malleable Iron
• Size: 4 in
• Suitable For Use With: IMC/Rigid Conduit
• Global Trade Identification Number: 00781381463003
• Unit Count: 1.0 Count
• UPC: 781381463003
• Model Number: CJPPB1775GMTDOW
• Manufacturer Part Number: HUB400
• Included Components: HUB400
