Appleton HUB-200B 2 inches Ductile Iron Threaded Conduit Hub

Product Description

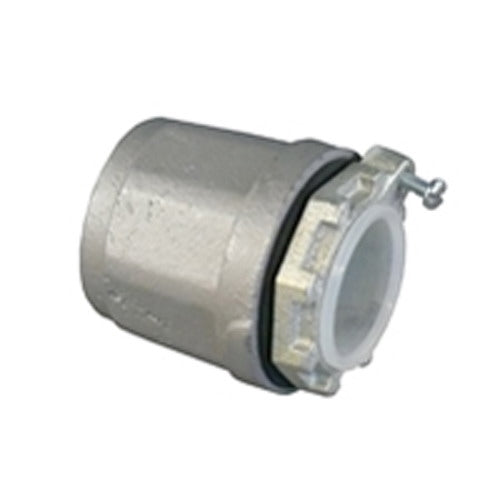

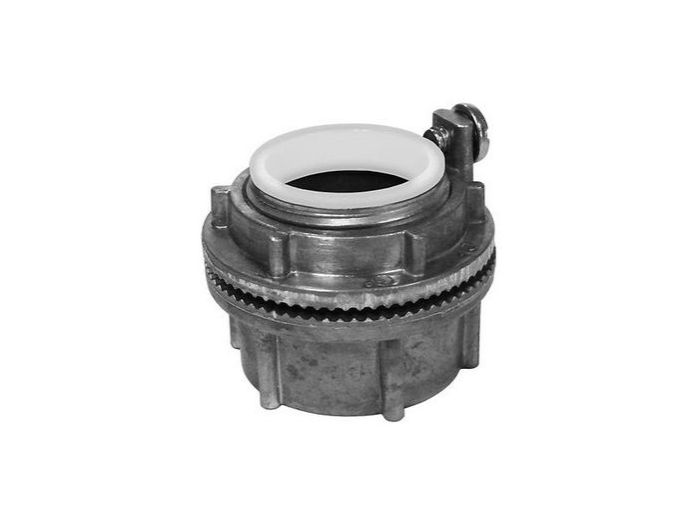

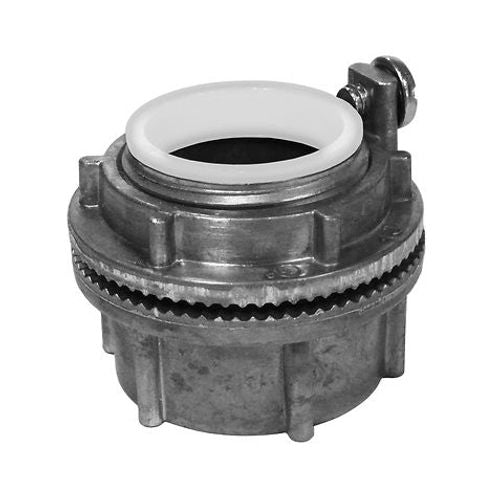

The APPLETON HUB-200B is a 2" Ductile Iron Threaded Conduit Hub with Insulated Throat & Bonding Screw. It provides threaded termination in sheet metal enclosures and is suitable for service entrance. This hub is a general-purpose fitting with a recessed neoprene O-ring to assure water and dust-tight connections.

• Bonding locknut
• Insulated throat
• Recessed neoprene O-ring to assure water and dust-tight connections

Product Highlights

The APPLETON HUB-200B is a 2" Ductile Iron Threaded Conduit Hub with Insulated Throat & Bonding Screw.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: HUB-200B
• Country of Origin: United States

Technical Specifications

• Size: 2"
• Material: Ductile Iron
• Connection Type: Threaded
• Product Type: Hub
• Manufacturer Part Number: HUB-200B
• Manufacturer: Appleton
• Family Series: Appleton Fittings
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Angle: Straight
• Trade Size: 2 "
• Hub Size: 2 "
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• Application: For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: HUB200B
• Country of Origin: MX
• EU RoHS Indicator: C
• Series: HUB
• Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL Listed For Class I, Division 2
• Standards: UL 514BUL File No. E14814CSA 065178/18.3NEMA FB-1RoHS CompliantClass I, Div 2
• Type: Insulated Throat Straight
• UNSPSC: 39121311
• UPC 12: 781381500371
• Brand: Appleton
• Finish: Zinc Electroplate/Chromate/Epoxy Powder Coat
• Diameter: 2 in
