Appleton HUB-200 Conduit Hub 2 inches Insulated

Product Description

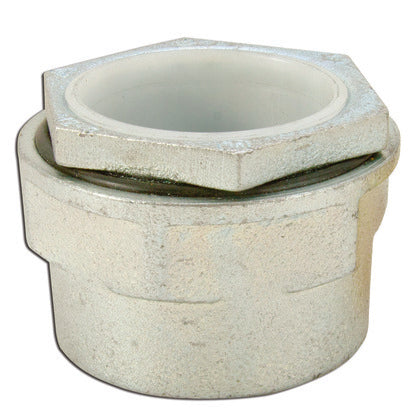

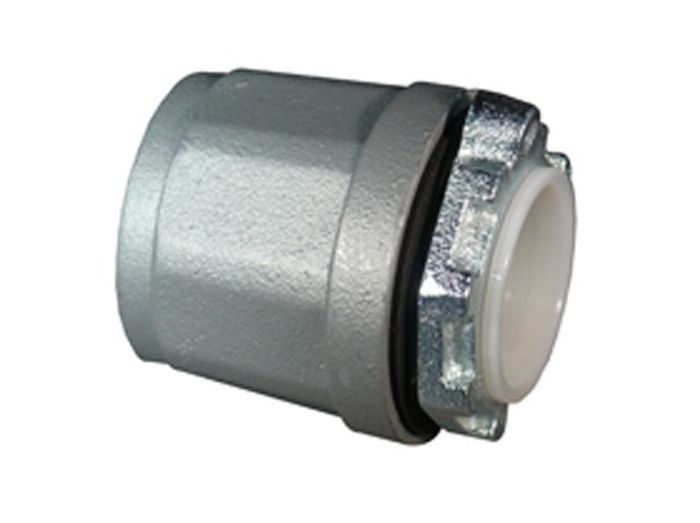

The APPLETON HUB-200 is a 2" insulated conduit hub made from malleable iron. It is designed for use with rigid metal conduit or IMC to connect to a threadless opening in an enclosure. Appleton's Uni-Seal rigid conduit hubs eliminate the need for welded hubs.

• Efficiency of installation with single wrench installation
• Provides maximum wiring room
• Protective insulated throats, positive grounding and watertight sealing action

Product Highlights

This straight insulated throat hub provides a vibration resistant connection with assured ground continuity. It is suitable for use with service entrance conduit.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: HUB-200
• Country of Origin: MX

Technical Specifications

• Material: Malleable Iron
• Diameter: 2 in
• Application: For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure
• ARRA Compliant: Y
• Buy American Compliant: N
• Catalog Number: HUB200
• Country of Origin: MX
• Dimensions: 3.13 in Dia x 1.88 in L
• EU RoHS Indicator: C
• Series: HUB
• Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL Listed For Class I, Division 2
• Standards: UL 514BUL File No. E14814CSA 065178/18.3NEMA FB-1RoHS CompliantClass I, Div 2
• Type: Straight
• UNSPSC: 39121311
• UPC 12: 781381462808
• Brand: Appleton
• Manufacturer: Appleton
• Finish: Zinc Electroplate/Chromate/Epoxy Powder Coat
• Size: 2 in
• Suitable For Use With: IMC/Rigid Conduit
• Product Series: Threaded Conduit Hub
• Family Series: Appleton Fittings, Threaded Conduit Hub Series
• Description: Straight Insulated Throat Hub, Size: 2 IN, Material: Malleable Iron, Finish: Triple-Coat Zinc Electroplate, Chromate And Epoxy Powder Coat, Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL Listed F
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Connection Type: Hub
• Angle: Straight
• Trade Size: 2 "
• Hub Size: 2 "
• Hub Type: Female Thread
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• NEMA Rating: NEMA 12, NEMA 4, NEMA FB1
• Hazardous Location: Yes
• Approvals: CSA, UL
• Net Weight: 1.34 lbs
