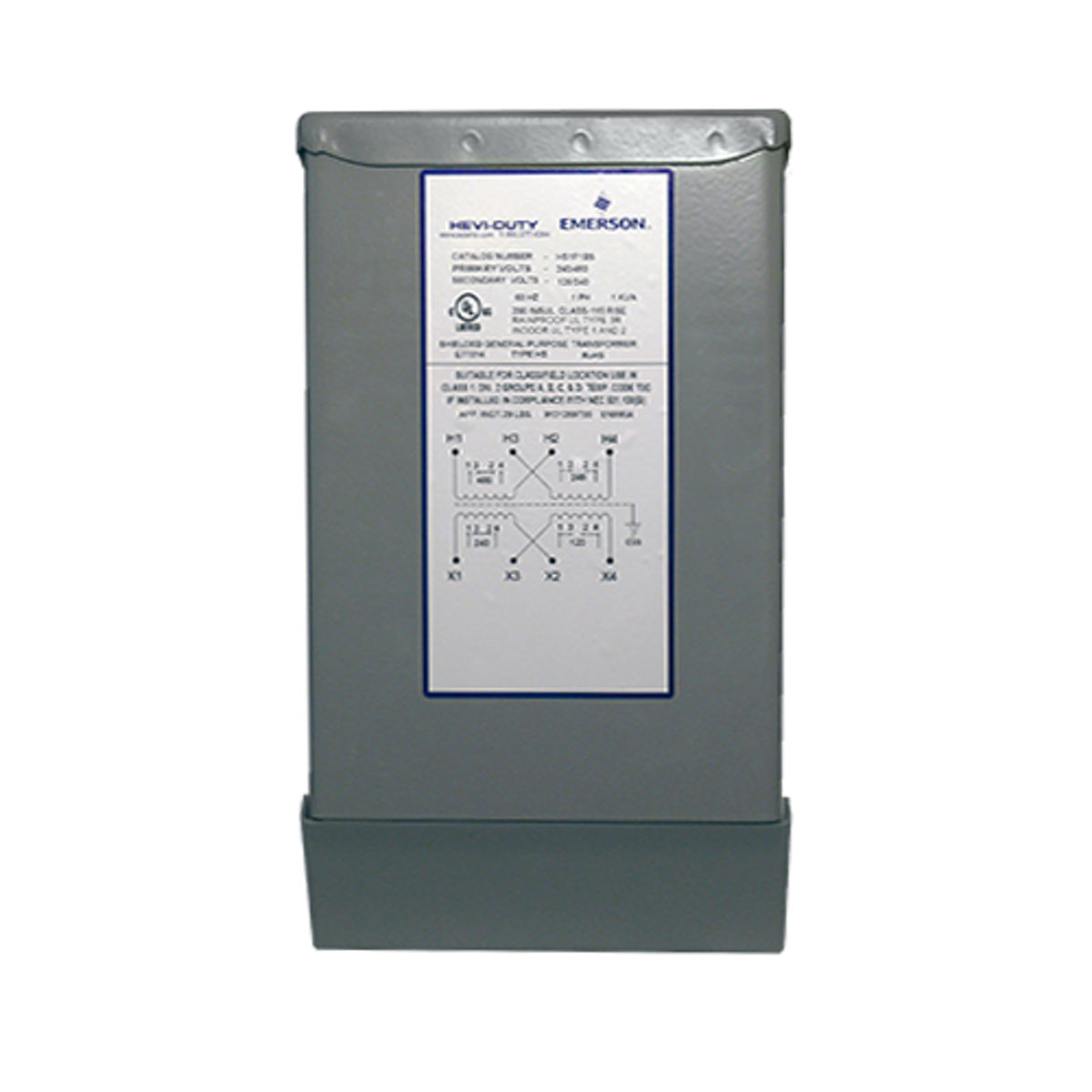

Appleton HS19F750B 0.750kva 120x240-12/24 Bb

Product Description

The APPLETON HS19F750B is a buck boost transformer with a 0.75 KVA rating and a primary voltage of 120 V, 240 V, and a secondary voltage of 12/24 Volt. It is designed as a small, single phase, dry type distribution transformer with dual voltage primary and secondary capabilities. Transformers can be connected for a wide range of voltage combinations.

• Maximum Secondary Amperage: 62.5 at 12V, 31.2 at 24V
• Enclosed for protection
• In compliance with neck article 210.9, exception 1 when field connected as an autotransformer. They can handle loads up to 20 times the nameplate rating

Product Highlights

This buck-boost transformer provides a compact, energy efficient, low cost means for raising or lowering voltage by a relatively small amount, typically used to power control panels, landscape lighting and other loads with specific voltage requirements.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: HS19F750B

Technical Specifications

• Manufacturer Part Number: HS19F750B
• Manufacturer: SolaHD
• Family Series: SolaHD Transformers
• Phase: 1
• Type: Buck Boost
• VA Rating: 750 VA
• Primary Voltage: 120 V, 240 V
• Secondary Voltage: 12 V, 24 V
• Enclosed: Yes
• Approvals: CSA, UL
• Brand: Appleton Emerson
• Depth: 5 in
• Frequency Band: 60 Hz
• Transformer Style: Encapsulated
• NEMA Rating: NEMA 3R
• Number of Phases: 1 Phase
• Voltage: 120 x 240 VAC - 12/24 VAC
• Width: 6 in
• Height: 10 in
• Mounting Type: Floor Mount
• Insulation Temperature: 180 deg C
• Winding: Copper
• KVA Rating: 0.75 kVA
• Series: SolaHD
• Enclosure Type: N3R enclosure
• Brand Name: Sola
• Current Rating: 31.2 Amps
• Maximum Frequency: 60 Hz
• Minimum Frequency: 60 Hz
• Number of Items: 1
• Part Number: HS19F750B
• UPC: 783472100729
• Unit Count: 1 Count
• Model: HS19F750B
