Appleton HL-500 NEER Pulling Elbow 1/2 in 90 deg

Product Description

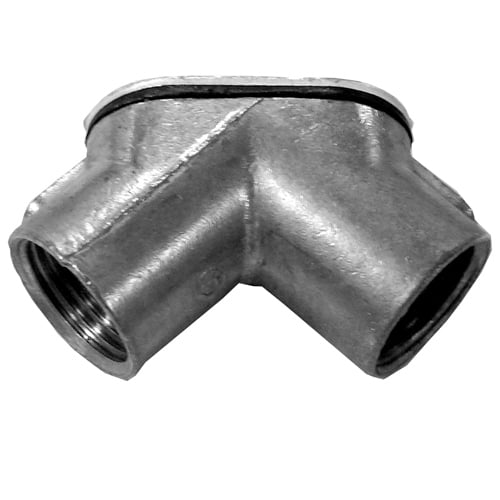

The APPLETON HL-500 NEER raintight pulling elbow with cover features a 1/2 in trade size and 90-degree angle. Constructed from die-cast zinc, it is suitable for use with rigid conduit and IMC. The removable cover provides ample access for unobstructed wire pulling and is raintight for wet locations.

• Female x female connection
• The removable cover gives ample access so that wire pulling can be achieved without any obstructions
• Raintight (wet locations)

Product Highlights

The APPLETON HL-500 pulling elbow is ideal for facilitating conductor pulling through sharp bends in rigid conduit or IMC runs in commercial and industrial applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: HL-500

Technical Specifications

• Material: Die Cast Zinc
• Angle: 90 deg
• Trade Size: 1/2 in
• Catalog ID: NEEHL-500
• Standard & Approvals: UL 514B, CSA C22.2, NEMA FB-1 and RoHS Compliant
• Suitable For Use With: Rigid Conduit and IMC
• Diameter: 1 1/2 in
• Insulation: Non-Insulated
• Type: 90 Deg Corner Pulling Elbow
• Brand: Appleton
• Sub Brand: NEER
• 12-Digit UPC: 687855225002
• GTiN: 00687855225002
• Product UPC: 68785522500
• UNSPSC: 39131717
• Used On: Rigid/IMC Conduit
• Approval: UL 514B, CSA C22.2
• Bend Angle: 90 Degree
• Installation: Threaded Female/Female
• Constructional Feature: Rain Tight
• TC Connection: Female X Female
• Size: 2.1 Inch Length x 2.1 Inch Height
