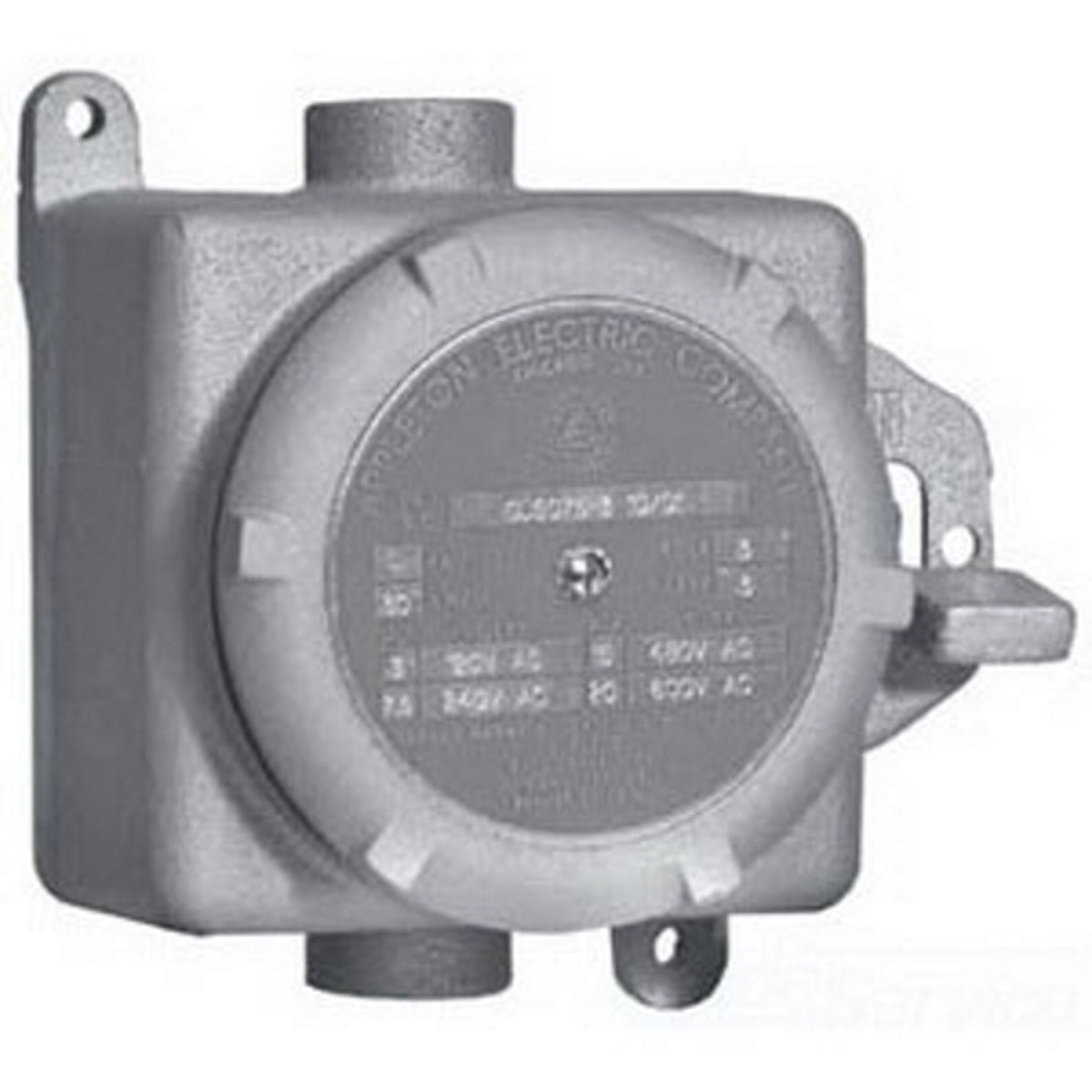

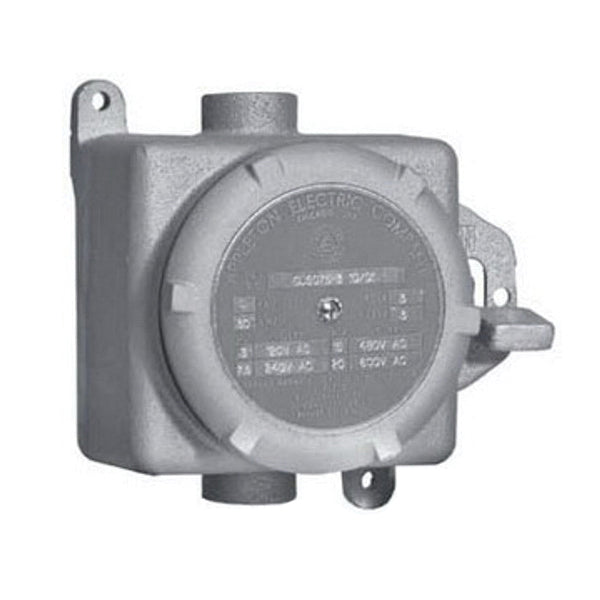

Appleton GUSC75-3 3-pole Tumbler Switch Unilet

Product Description

The Appleton GUSC75-3 is a UNILETS GUSC Series heavy-duty tumbler switch. Rated for 600 VAC and 30 AMP, this 3-pole switch features a NEMA 7D, 9EFG enclosure and is designed for surface mounting with a 3/4 IN feed-thru hub. It is suitable for controlling motors and other apparatus.

• Heavy-Duty Tumbler Switch
• Voltage Rating: 600 VAC
• Amperage Rating: 30 AMP

Product Highlights

This heavy-duty tumbler switch is ideal for controlling motors in demanding industrial environments. Its robust construction and safety certifications ensure reliable performance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GUSC75-3
• Country of Origin: MX

Technical Specifications

• Type: GUSC Series Heavy-Duty Tumbler Switch
• Brand: Appleton
• Enclosure: NEMA 7D, 9EFG
• Sub Brand: UNILETS
• Trade Size: 3/4 Inch
• Applications: For Controlling Motors And Other Apparatus
• Amperage Rating: 30 A
• Mounting: Surface Mount With 3/4 IN Feed-Thru Hub
• Number of Poles: 3
• Standard: Class I, Division 1 And 2, Group D, Class II, Division 1 And 2, Groups E, F, G , Class III
• Voltage Rating: 600 VAC
• Power Rating: 7.5/15/20 hp
• Material: Malleable Iron
• Actuator: Handle
• Country of Origin: MX
