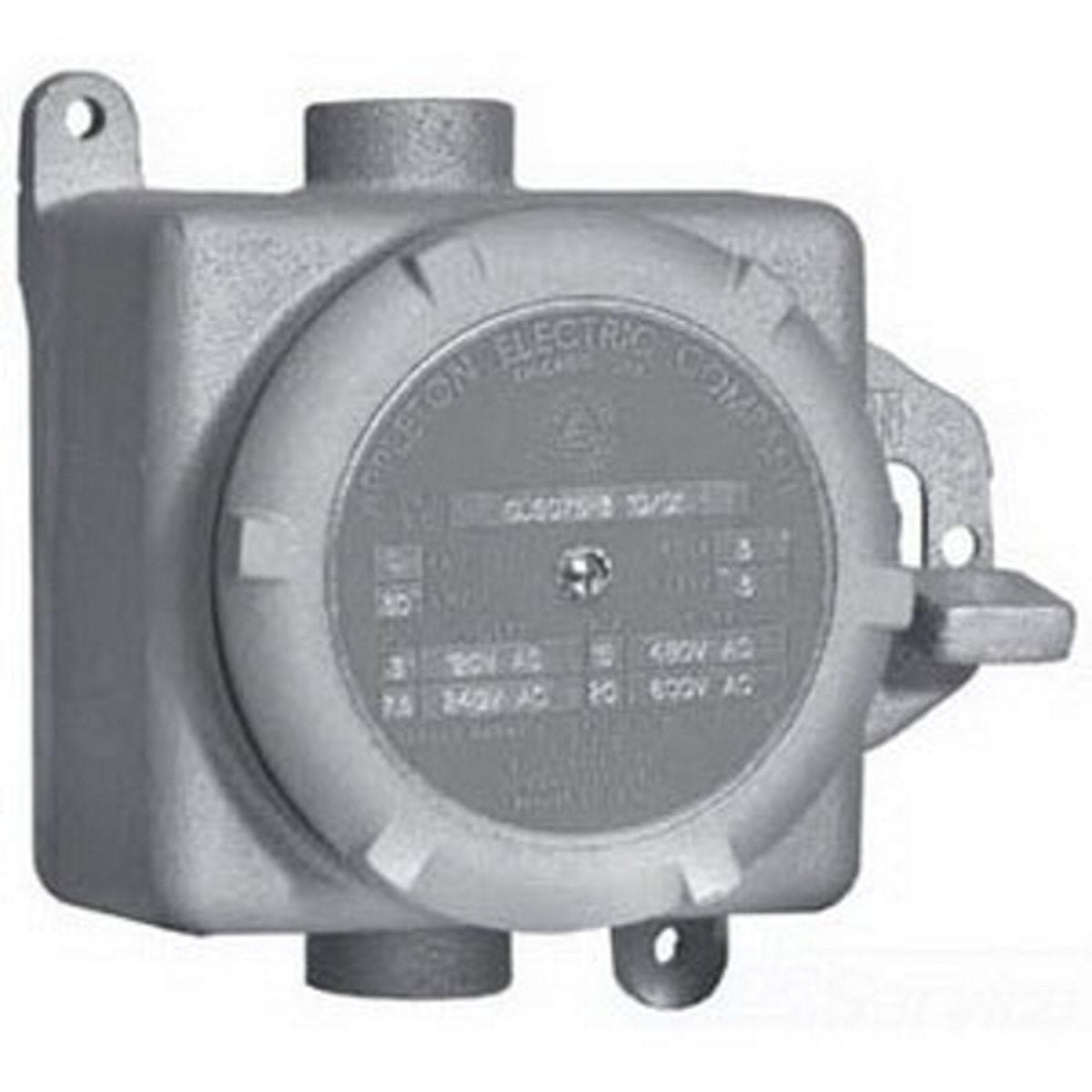

Appleton GUSC75-2 Tumbler Switch 2 Pole 600 VAC

Product Description

The Appleton GUSC75-2 tumbler switch is designed for heavy-duty applications. This two-pole switch operates at a voltage rating of six hundred VAC and an amperage rating of thirty amps. It is compliant with NEMA standards for safety and reliability.

• Voltage Rating: 600 VAC
• Amperage Rating: 30 AMP
• Enclosure: NEMA 7D, 9EFG

Product Highlights

This switch is suitable for controlling motors and other equipment in various industrial settings. Its durable construction ensures long-lasting performance even in demanding environments.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: GUSC75-2

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 AMP
• Number of Poles: 2
• Enclosure Material: Malleable Iron Body, Copperfree Aluminum Cover
• Mounting Type: Surface Mount with 3/4 Inch Feed-Thru Hub
• HP Rating: 3 HP at 240 VAC, 7.5 HP at 480 VAC, 10 HP at 600 VAC
• Standard Compliance: Class I, Division 1 and 2, Group D, Class II, Division 1 and 2, Groups E, F, G, Class III
