Product Description

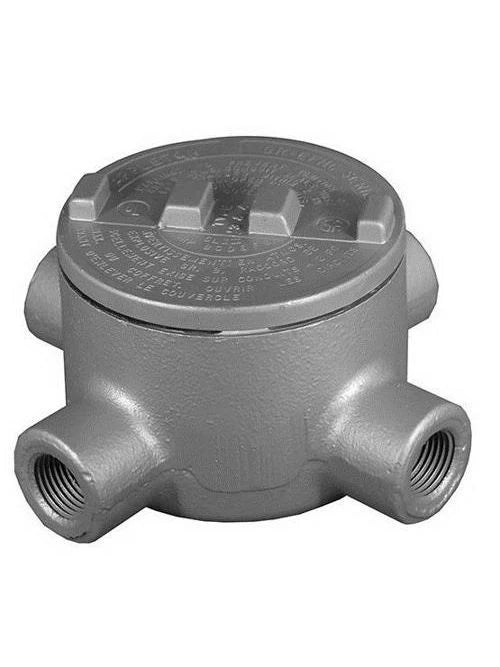

The Appleton GRX75-A is a three-quarter inch Gr Unilet outlet box made from copper-free aluminum. This outlet box features four inlet/outlet hubs for versatile cable entry options and has a cubic capacity of eighteen cubic inches. It is designed for use with threaded metal conduit, making it suitable for various electrical applications.
- Material: Copper-free aluminum
- Dimensions: Height of three and three-fourth inches
- Cable entry: Four three-quarter inch GRTX hubs
Product Highlights
This unit is explosionproof and dust-ignitionproof, ensuring safety in hazardous locations. The precision-tapped tapered hub threads promote secure connections for durable installations.
Product Information
Standard Information
-
Catalog Number: GRX75-A
-
Manufacturer: Appleton Electric
Technical Specifications
-
Size: 3/4 inch
-
Type: 4-Inlet/Outlet, Round
-
Material: Copper-free aluminum
-
Cubic Capacity: 18 CU-IN
-
Applications: For use with threaded metal conduit
-
Mounting Type: Wall/Ceiling
-
TC Connection: Threaded
