Appleton GRX100-A 1 Hub Gr Box Cast Aluminum

Product Description

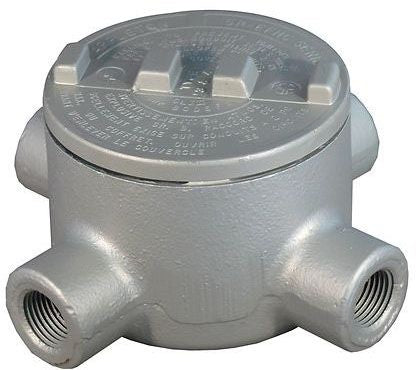

The Appleton GRX100-A is a one-inch aluminum unilet outlet box suitable for various electrical installations. Designed for durability, it is made from epoxy powder-coated copper-free aluminum. This product is optimized for use with threaded metal conduits and provides reliable access for wire pulling and maintenance.

• Construction: Copper-free aluminum
• Hub Size: One inch with four hubs
• Capacity: Eighteen cubic inches

Product Highlights

This product is ideal for connecting conduit lengths and changing conduit run directions. It features an externally threaded cover type and offers a cover opening diameter of three point thirty-eight inches.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Trade Size: One Inch

Technical Specifications

• Material: Copper-free aluminum
• Enclosure: Class I Div 1 and 2, Group B C D; Class II Div 1 and 2, Group E F G; Class III, NEMA 3/4
• Hub Location: (4) Side
• Cover Type: Externally threaded
• Approval: UL, CSA C22.2
• Applications: General purpose wiring, wire pulling, connecting conduit lengths, changing conduit runs
• Catalog Number: GRX100-A
