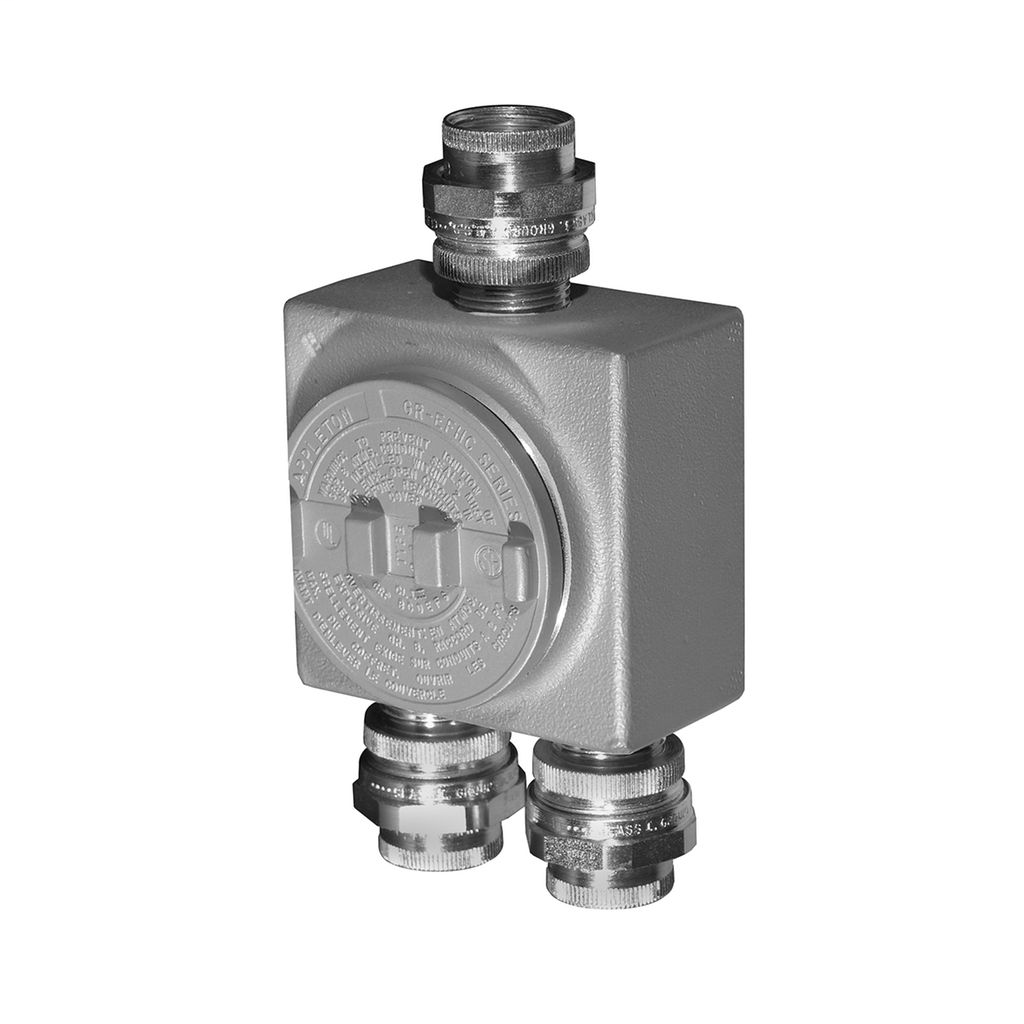

Appleton GRUSE75 Gru Series Unilet 3/4 Inch

Product Description

The APPLETON GRUSE75 is a explosionproof, dust-ignitionproof, and raintight GRU series unilet. These corrosion-resistant outlet boxes provide access for maintenance, allow the connection of different lengths of conduit, and for changing the direction of conduit. It is suitable for use with threaded metal conduit in indoor and outdoor classified locations.

• Explosionproof, dust-ignitionproof, raintight
• Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
• Furnished with covers

Product Highlights

The APPLETON GRUSE75 Unilet is ideal for general purpose wiring, pulling wires, connecting conduit lengths, and changing the direction of conduit runs.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRUSE75

Technical Specifications

• Size: 3/4 IN
• Type: GRUSE Outlet Box With Union Hubs
• Brand: Appleton
• Finish: Chromate, Epoxy Powder Coat, Triple-coat Finish, Zinc Electroplate
• Material: Copperfree Aluminum, Iron
• Sub Brand: UNILETS
• Cable Entry: 0.75 in
• Product UPC: 78138144625
• 12-Digit UPC: 781381446259
• Applications: For Use With Threaded Metal Conduit
• Hub Size: 3/4 Inch
• Hub Type: External
• Number of Hubs: 3
• Hub Location: (3) Side
• Capacity: 19 Cu Inch
• Shape: Round
• Cover Type: Internally Threaded
• Cover Opening Diameter: 3.25 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 886
• Includes: Union Hub
• Application: General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance
• IGCC: 4433
• Standard: UL 886; UL File Number E10444; Class I; Division 1 And 2; Groups C; D; Class II;
• Cubic Capacity: 19 CU-IN
• Number of Outlet: 3
• Special Features: Explosionproof; dust-ignitionproof; Copper free aluminum cover and body with ext
• Knockouts: No
