Appleton GRU50-A GRU Universal Outlet Box 1/2 in

Product Description

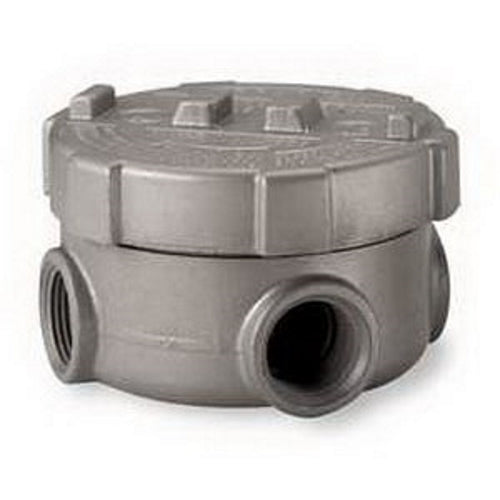

The APPLETON GRU50-A is a GRU series universal conduit outlet box with five 1/2 IN hubs, ideal for indoor and outdoor classified locations. This corrosion-resistant aluminum box provides access for maintenance, allows connection of different conduit lengths, and facilitates changing conduit direction. It features an internal ground screw and O-ring.

• Explosion & Dust-Ignitionproof
• Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
• Universal design with five threaded universal hubs and three close-up plugs

Product Highlights

Provides reliable safety in locations exposed to explosive atmospheres or flammable dusts.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRU50-A
• Country of Origin: Mexico

Technical Specifications

• Product Series: GRU
• Manufacturer Part Number: GRU50-A
• Manufacturer: Appleton
• Family Series: Appleton Electrical Boxes, GRU Series
• Connection Type: Threaded
• Number of Hubs: 5
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Aluminum
• Cover Composition: Aluminum
• Cover Included: Yes
• Cover Type: Blank
• Gasket Included: Yes
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Comments: Explosion & Dust-Ignitionproof
• Net Weight: 0 lbs
• Gross Weight: 1.5 lbs
• Finish: Epoxy Powder Coated
• UNSPSC: 39121308
• Material: Aluminum
• Application: Indoor/Outdoor Applications
• Size: 1/2 in
• Type: Dust-Ignitionproof Universal
• Series: GRU
• Capacity: 13-1/2 cu in

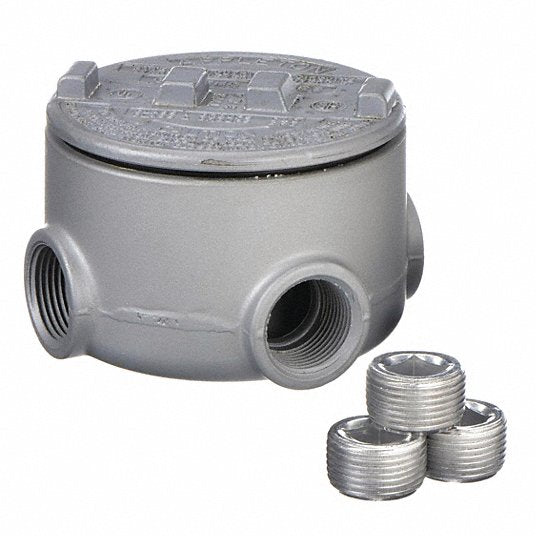

• Includes: (5) Threaded Hubs, (3) Close-Up Plugs, Epoxy Powder Coat Cover, Externally Threaded Aluminum Surface Cover, Internal Ground Screw and O-Ring
• Warranty: Limited
• Dimensions: 3.75 in H x 2.69 in W
• Suitable For Use With: Threaded Metal Conduit System
• Brand: Appleton™
• Trade Size: 1/2 in
• Thread Gender: Female
• Hub Style: Threaded
• Body Capacity: 13.5 cu in
• Body Style: XAT
• Back Type: Round
• Body Type: Conduit Outlet Body
• Overall Width: 4-1/16 in
• Overall Height: 2-11/16 in
• Overall Length: 4-1/16 in
• Standards: UL 886UL File No. E10444CSA C22.2 No. 25C22.2 No. 30/025875Class I, Div 1 and 2, Groups C, D, Class II, Div 1 and 2, Groups E, F, G, Class IIIRoHS Compliant
• Hazardous Location: Yes
• For Use With: Threaded IMC
• Hazardous Location Rating: Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
• Indoor/Outdoor Usage: Indoor/Outdoor
• Item: Conduit Outlet Body
• Special Features: O-Ring For Raintight Fit
• Thread Size: 1/2 in
• Thread Type: NPT
• Configuration: Universal
• Hub Size: 1/2 in.
• Hub Quantity: 5 Hubs
• Hub Placement: (4) Sides Cross (1) Bottom
• Internal Hubs: Internal Hubs
• Shape: Round
• Plugs: 3 Plugs
• Cover Opening Dia.: 3.38"
• Nominal Depth - less cover: 2.25"
• Applications: For Use With Threaded Metal Conduit
• Cable Entry: (5) 1/2 IN Hub
• Split Crucible: S
• Sub Brand: UNILETS
• 12-Digit UPC: 781381117081
• GTiN: 00781381117081
• Product UPC: 78138111708
• Depth: 1/2 in
• ARRA Compliant: N
• Buy American Compliant: N
• Cubic Capacity: 13.5 CU-IN in ³
• Currency: USD
• Height: 1.20 in
• Height [Metric]: 3.0480 cm
• Length: 13.90 in
• Length [Metric]: 35.3060 cm
• Number Of Outlet: 5
• Standard: UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, 025875 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
• Width: 10.10 in
• Width [Metric]: 25.6540 cm
• Stock Status: NONSTOCK
• Cover Opening Size: 3.38 in
