Appleton GRN50 1/2 gr unilet type n

Product Description

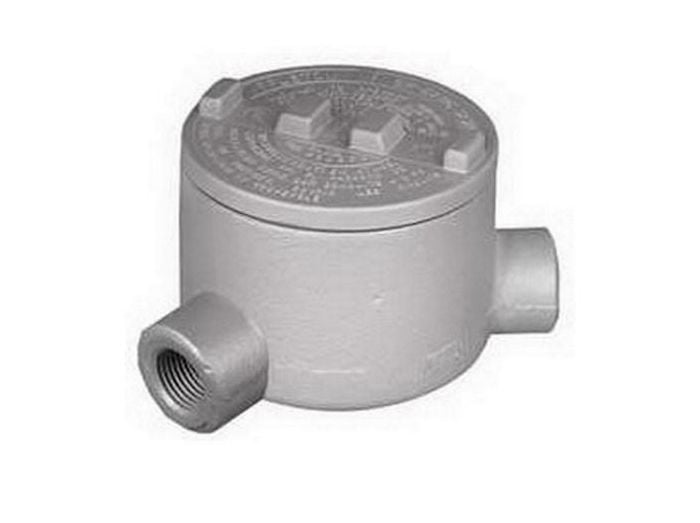

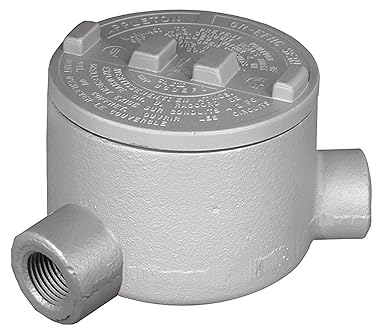

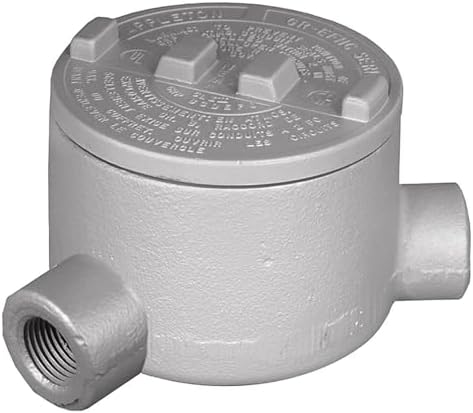

The APPLETON GRN50 is a 1/2 GR UNILET TYPE N. It is an explosionproof and dust-ignitionproof conduit outlet box ideal for indoor and outdoor classified locations. These corrosion-resistant outlet boxes provide access for maintenance and allow the connection of different lengths of conduit.

• Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact, and shock
• Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
• Internal ground screw standard

Product Highlights

Appleton GRN series outlet boxes are ideal for use in indoor and outdoor classified locations. These boxes are corrosion resistant and provide access for maintenance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRN50

Technical Specifications

• Brand: Appleton
• Manufacturer Part Number: GRN50
• Manufacturer: Appleton
• Product Series: GR
• Family Series: Appleton Electrical Boxes, GR Series
• Description: UNILETS Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 1/2 IN, Cable Entry: 2 1/2 IN GRN Hub, Cubic Capacity: 18 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Form Number: 1, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 2-1
• Connection Type: Threaded
• Style: GRN
• Shape: N
• Number of Hubs: 2
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Iron
• Cover Composition: Aluminum
• Cover Included: Yes
• Cover Type: Blank
• Gasket Included: Yes
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Comments: Corrossion, impact & shock resistance
• Finish: Triple Coated
• UNSPSC: 39121308
• Material: Malleable Iron
• Application: Indoor/Outdoor Applications
• Size: 1/2
• Type: N-Style Dust-Ignitionproof Explosionproof
• Series: GR Series
• Capacity: 18
• Includes: Internal Ground Screw and O-Ring
• Suitable For Use With: Threaded Metallic Conduit System
