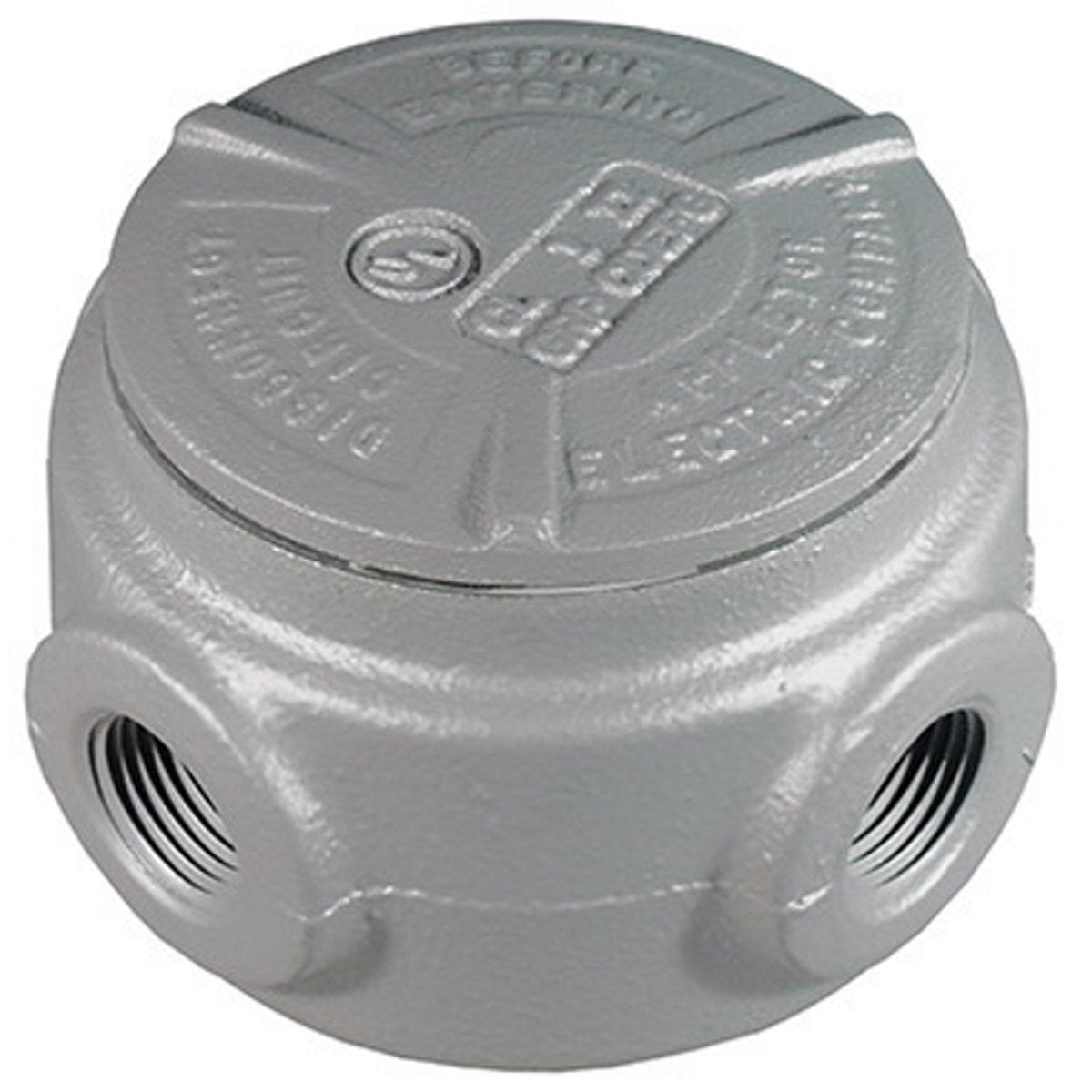

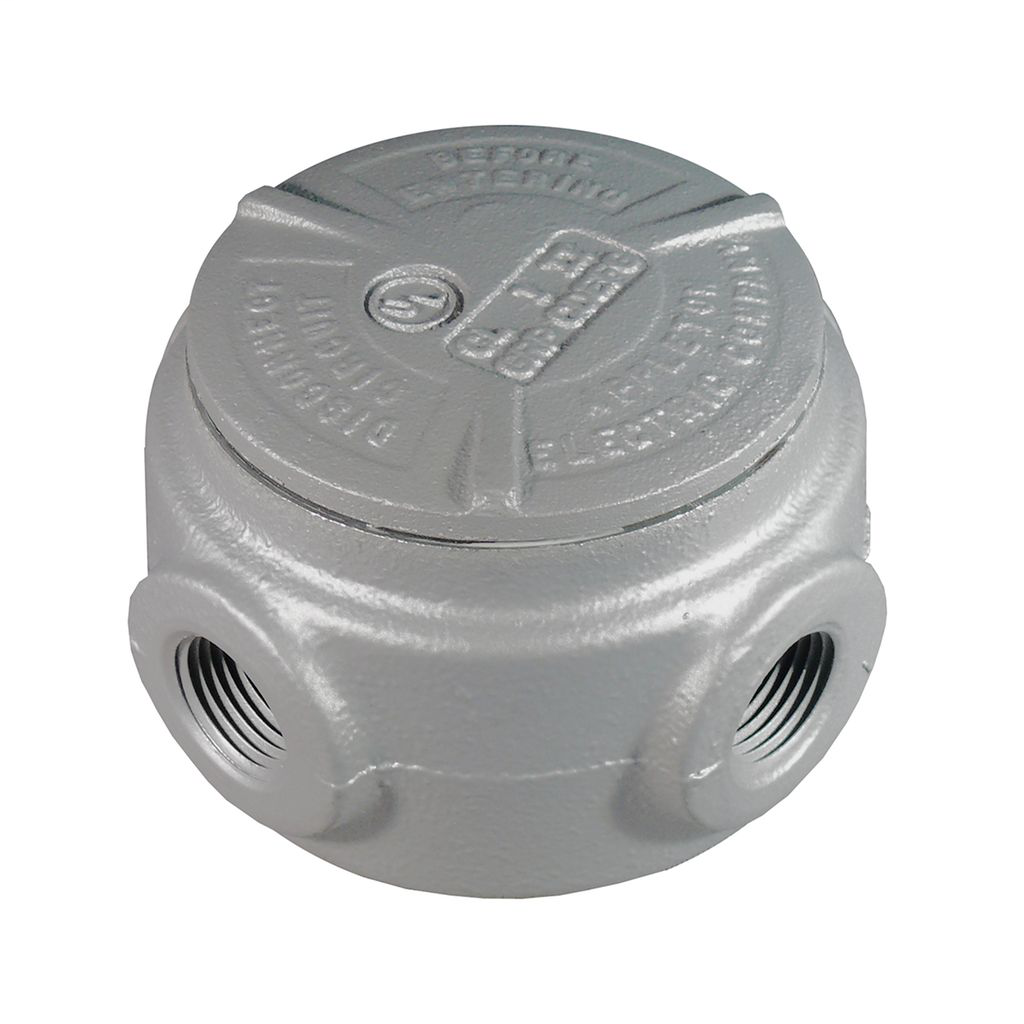

Appleton GRJS100 GRJS Junction Unilet 1 Inch

Product Description

The APPLETON GRJS100 explosionproof, dust-ignitionproof GRJS universal conduit outlet box is suitable for indoor and outdoor classified locations. This corrosion-resistant outlet box provides access for maintenance and allows the connection of different lengths of conduit, and for changing the direction of conduit. It is used with threaded metal conduit for general purpose wiring.

• Explosionproof and dust-ignitionproof
• Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
• Malleable iron body provides resistance to corrosion, impact, and shock

Product Highlights

The APPLETON GRJS100 is ideal for use in hazardous environments. It features a universal design with five threaded universal hubs and three close-up plugs.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRJS100
• Country of Origin: Mexico

Technical Specifications

• Size: 1 IN
• Type: Universal, Round, Explosionproof, Dust-Ignitionproof, Raintight, Corrosion-Resistant
• Brand: Appleton
• Material: Iron
• Sub Brand: Unilet
• Used With: Threaded Metal Conduit
• Trade Size: 1 Inch
• Cable Entry: 1 in
• Product UPC: 78138144095
• 12-Digit UPC: 781381440950
• Applications: Indoor/Outdoor
• Mounting Type: Ceiling or Wall
• TC Connection: Threaded
• Catalog Number: GRJS100
• Manufacturer: Appleton Electric
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Metal Conduit
• Cubic Capacity: 7.3 CU IN
• Knockouts: No
• Special Features: Explosionproof, dust-ignitionproof, raintight; Furnished with internal ground screw; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum epoxy powder coat cover; General purpose wiring; Universal design with five threaded openings and three close-up plugs; Compact round box for use where space is limited; Serve as mounting means for lighting fixtures when used with hub cover; Internally threaded body with externally threaded cover; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant: ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
• Standard: UL 886, UL File Number E10444, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
• RoHS Indicator: Contact Manufacturer
• UPC: 781381440950
• GTIN: 00781381440950
• Item Type: Universal Outlet Box
• Length: 6.7000
• Length UOM: Inch
• Width: 5.1000
• Width UOM: Inch
• Height: 3.6000
• Height UOM: Inch
• Style: XAT
• Hub Size: 1 Inch
• Hub Type: Internal
• Number of Hubs: 5
• Hub Location: (4) Side, (1) Down
• Shape: Round
• Number of Plugs: 3
• Cover Type: Externally Threaded
• Cover Opening Diameter: 2.56 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 886
• Includes: Cover
• Diameter: 1 in
• Finish: Triple Coated
• UNSPSC: 39121308
• Series: GRJS
• Capacity: 7.3
• Suitable For Use With: Threaded Metallic Conduit System
• Model: GRJS100
• MPN: GRJS100, GRSS100, CROUSE HINDS, GUR3
