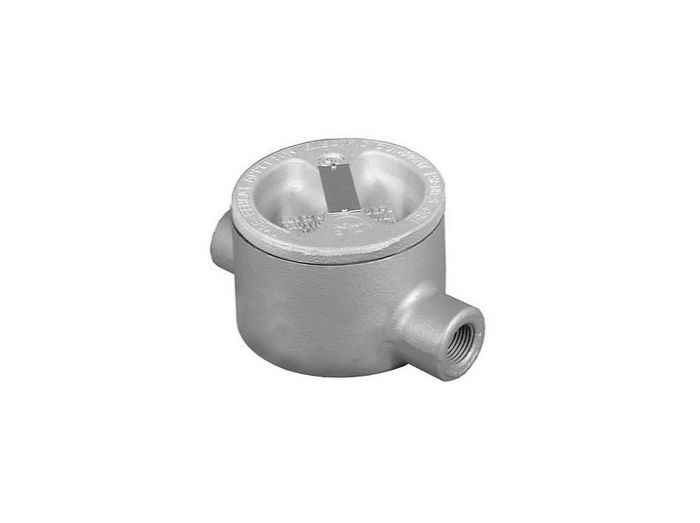

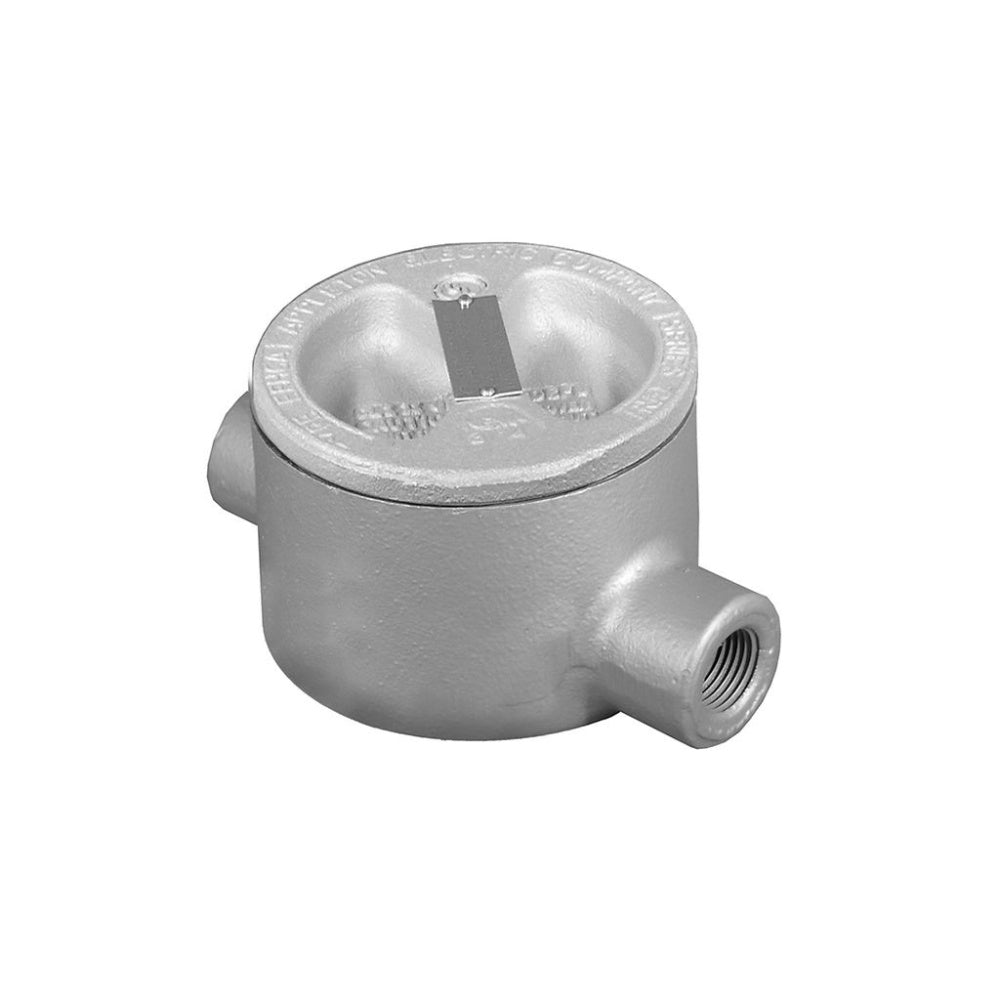

Appleton GRHL50 GRH Series unilet 1/2 inches w/cover

Product Description

The APPLETON GRHL50 explosionproof, dust-ignitionproof GRH conduit outlet box is furnished with an internal ground screw and O-ring. These corrosion-resistant outlet boxes provide access for maintenance and allow the connection of different lengths of conduit, and for changing the direction of conduit.

• Explosionproof and dust-ignitionproof
• Furnished with internal ground screw and O-ring
• Corrosion-resistant

Product Highlights

The APPLETON GRHL50 is ideal for use in indoor and outdoor classified locations. It is designed for use with threaded metal conduit for general purpose wiring.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRHL50

Technical Specifications

• Product Series: GRH
• Manufacturer Part Number: GRHL50
• Manufacturer: Appleton
• Family Series: Appleton Electrical Boxes, GRH Series
• Description: Explosionproof Conduit Outlet Box, Style L, Hub Size 1/2 Inch, Hub Type External, Number of Hubs 2, Hub Location 2 Side, Capacity 13.8 Cu Inch, Shape Round, Cover Type Externally Threaded, Cover Opening Diameter 3.38 Inch, Enclosure Class I Div 1 and 2
• Connection Type: Threaded
• Shape: L
• Number of Hubs: 2
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Iron
• Cover Composition: Aluminum
• Cover Included: Yes
• Cover Type: Blank
• Gasket Included: Yes
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Comments: Corrossion, impact & shock resistance
• Component: Conduit
• Material: Malleable Iron, Aluminum
• Diameter: 1/2 in
• Hub Size: 1/2 Inch
• Hub Type: External
• Hub Location: 2 Side
• Capacity: 13.8 Cu Inch
• Cover Opening Diameter: 3.38 Inch
• Enclosure: Class I Div 1 and 2
