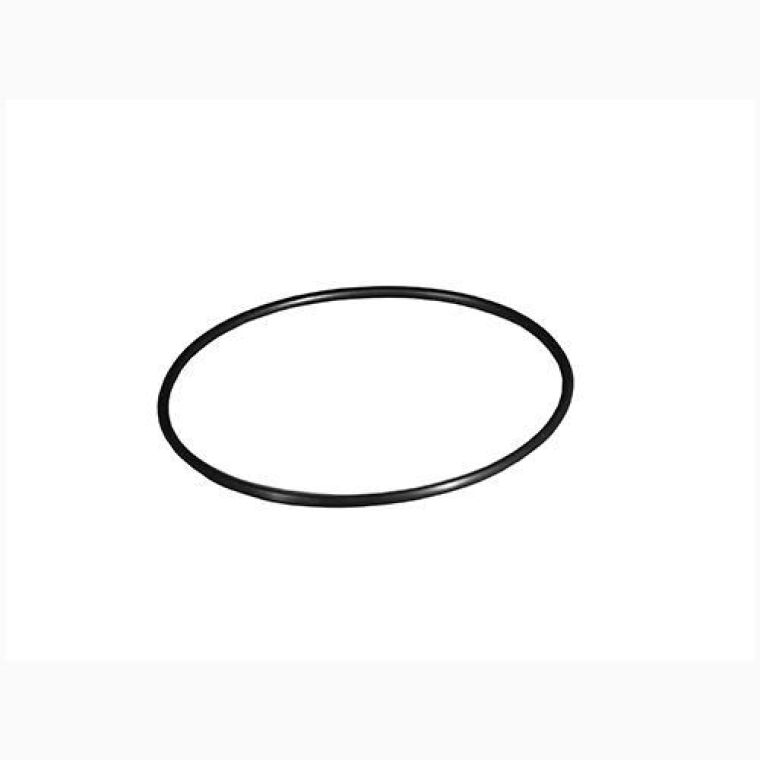

Appleton GRG-2 O-Ring For Form 2 GR

Product Description

The APPLETON GRG-2 O-Ring is designed for Form 2 GR. This O-ring provides a raintight fit when used on GR (Forms 1, 2, and 3), GRF (Form 1), GRH, and GRU (Form 1) series. It maintains the seal integrity of conduit fittings and enclosures in RMC and IMC systems.

• Explosionproof and dust-ignitionproof
• Standard O-rings provide a raintight fit
• Constructed from Buna-N rubber for oil and chemical resistance

Product Highlights

The APPLETON GRG-2 O-Ring ensures a secure, raintight seal for conduit fittings and enclosures, suitable for use in hazardous locations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRG-2
• Country of Origin: USA

Technical Specifications

• Material: Buna-N
• Brand Name: Appleton
• Item Name: O-Ring
• Type: Raintight
• For Use With: Form 2 GR Series Conduit Outlet Box
• Standards: UL Listed, CSA C22.2
• Component: O-Ring
• Catalog Number: GRG-2
• Model: GR
• Used On: GR/GRF/GRH/GRU Series Conduit Outlet Box
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Enclosure: Class I Div 1 and 2 Group B, C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4
• Catalog Description: CONDUIT OUTLET BOX O-RING, TYPE FORM 2 BUNA-N O-RING, USED ON GR/GRF/GRH/GRU SERIES CONDUIT OUTLET BOX, CONSTRUCTIONAL FEATURE EXPLOSION PROOF, DUST IGNITION PROOF, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/4, APPROVAL UL, CSA C22.2
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Cover O-ring, Form 2 Type; Gr Conduit Outlet Box Used on; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class 1 Zone 1 and 2 Group Iia Iib, Class III Enclosure; Explosionproof, Dust Ignitionproof; Material Buna-N; Applicable Standard Nec/Cec
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Box/Enclosure General Accessories
• Unspsc: 39121308
• UPC 12 Digit: 781381302586
• SKU Name: app grg2
• Conduit Type: RMC / IMC
• Fitting Subtype: O-Ring
• Fitting Type: Seals & Washers
• Hazard Rating: Dust-Ignitionproof / Explosionproof
• Specifications Met: Buy American Act Compliant
